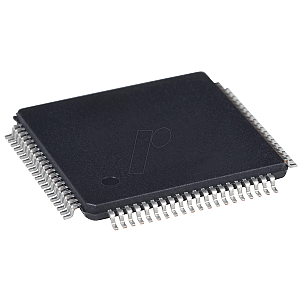

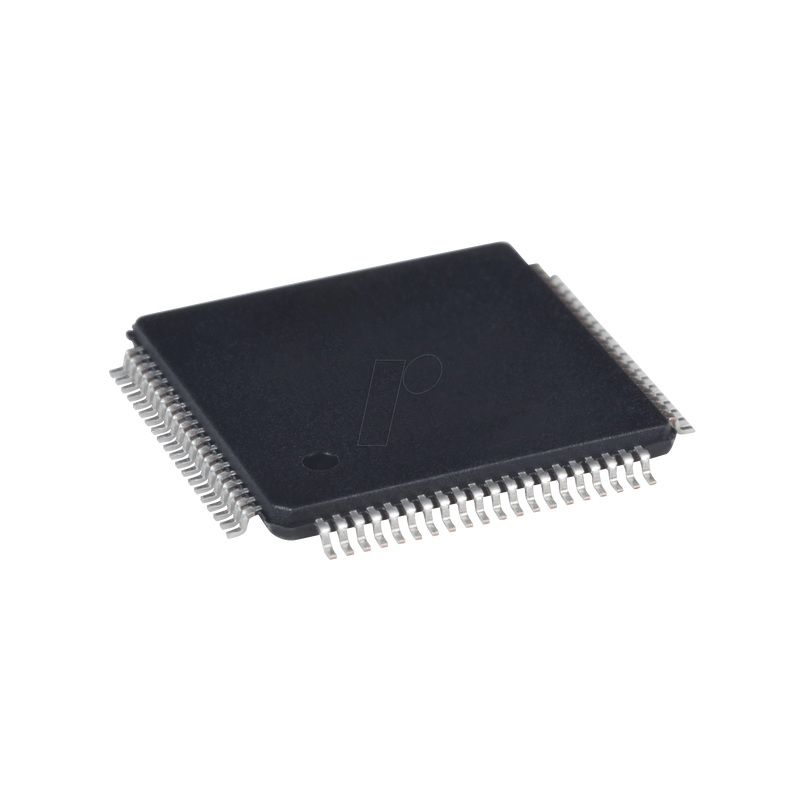

8-bit PICmicro microcontroller, 128 KB, 64 MHz, TQFP-80

64/80-pin, high-performance microcontroller with LCD driver and nanoWatt XLP technology

Special microcontroller features:
• Operating voltage range: 1.8V to 5.5V
• On-chip 3.3V regulator
• Operating speed up to 64 MHz
• Up to 128 KByte on-chip flash program memory
• Data EEPROM with 1,024 bytes
• 4K x 8 general purpose registers (SRAM)
• Flash program with 10,000 erase/write cycles memory, minimum
• 1,000,000 erase/write cycle data EEPROM memory, typical
• Flash retention 40 years, minimum
• Three internal oscillators: LF-INTRC (31 kHz), MF-INTOSC (500 kHz) and HF-INTOSC
(16 MHz)
• Self-programmable under software control
• Priority levels for interruptions
• 8 x 8 single-cycle hardware multiplier
• Enhanced Watchdog Timer (WDT):
- Programmable period from 4 ms to 4.194s (about 70 minutes)
• In-Circuit Serial Programming™ (ICSP™) via two pins
• Two-pin in-circuit debug
• Programmable:
- BORON
- LVD
• Two Enhanced Addressable USART modules:
- LIN/J2602 support
- Auto Baud Detection (ABD)
• 12-bit A/D converter with up to 24 channels:
- Auto acquisition and sleep operation
- Operating mode with differential input

Low-power features:
• Power-managed modes:
- Execute: CPU switched on, peripherals switched on
- Idle: CPU off, peripherals on
- Sleep: CPU off, peripherals off
• Start the two-speed oscillator
• Fail-safe watch monitor
• Energy-saving shutdown of the peripheral module (PMD)
• Ultra-low-power wake-up
• Fast wake-up, 1 µs typical
• Low power WDT, 300 nA typical
• Extremely low 50 Na input leakage
• Operating mode currents up to 5.5 µA, typical
• Idle currents down to 1.7 µA, typical
• Current in sleep mode down to very low 20 nA, typical
• RTCC current down to very low 700 nA, typical
• LCD current down to very low 300 nA, typical

LCD drivers and keyboard functions:
• Ability to directly control LCD panels: Can control LCD panel in sleep mode
• Up to 48 segments and 192 pixels, software selectable
• Programmable LCD timing module:
- Multiple LCD timing sources available
- Up to four commons: Static, 1/2, 1/3 or 1/4 multiplex
- Preload configuration: Static, 1/2 or 1/3
• Low-power network with prevoltage resistors for LCD

Highlights of the periphery
• Ten or eight CCP/ECCP modules:
- Seven Capture/Compare/PWM (CCP) modules
- Three improved acquisition/comparison/PWM (ECCP) modules
• Eleven 8/16-bit timer/counter modules:
- Timer0 - 8/16-bit timer/counter with programmable 8-bit prescaler
- Times1, 3, 5, 7 - 16-bit timer/counter
- Times2, 4, 6, 8, 10, 12 - 8-bit timer/counter
• Three analog comparators
• Configurable reference clock output
• Hardware Real-Time Clock and Calendar (RTCC) module with clock, calendar and alarm functions : time-out from 0.5s to 1 year
• Unit for measuring the charge time (CTMU):
- Capacity measurement for mTouch™ sensing
- Time measurement with 1 ns typical resolution
• High current sink/source 25 mA/25 mA (PORTB and PORTC)
• Up to four external interruptions
• Synchronous serial two-master connector (MSSP) Modules:
- 3/4-wire SPI (supports all four SPI modes)
- I2C™ master and slave mode
