Microchip PIC controller - high-performance RISC CPU
Microchip supports the complete performance range of 8-bit, 16-bit and 32-bit microcontrollers with powerful architecture, flexible storage technologies and extensive user-friendly development tools, as well as complete technical documentation. The advantages of Microchip microcontroller solutions are quite clear:
- All PIC® MCUs and dsPIC® DSCs enable your design projects to be scaled up or down
- The upwards-compatible architecture secures your investment in code development
- Switch easily between 8-bit, 16-bit and 32-bit families
- Pin compatibility between enclosure variants
- Low-risk product development
Rapid time-to-market cycles
Low total system costs
- Many controllers are delivered with a series of interesting functions pre-installed
- Analogue and digital peripherals can be integrated with minimal component costs
In stock
SKU PIC 16F505-I/P

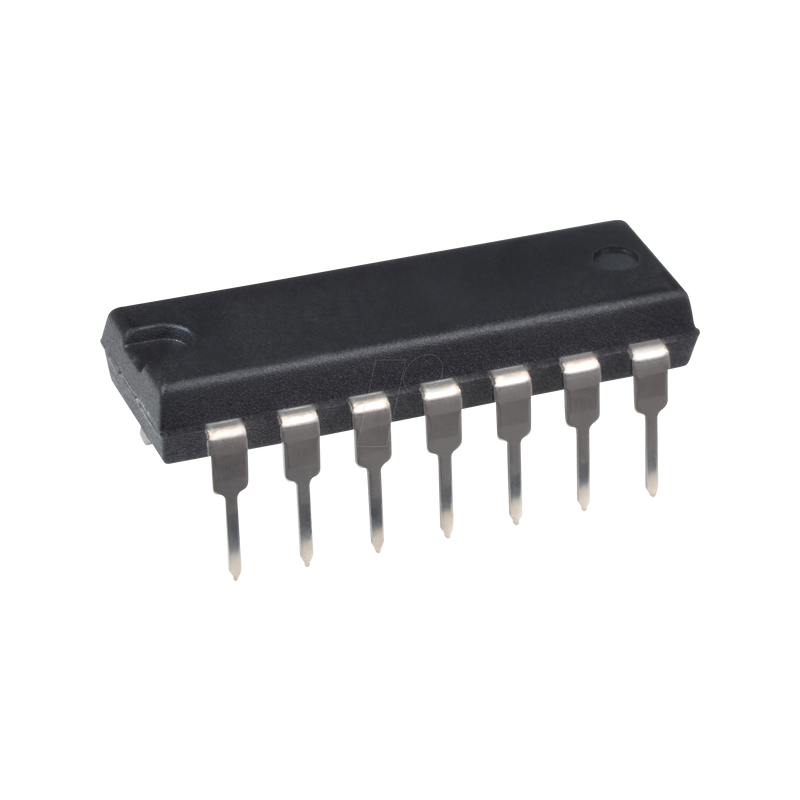

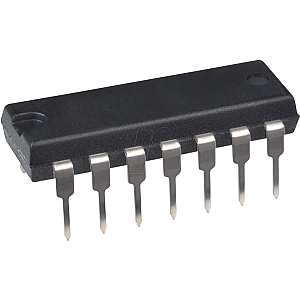

8-bit PICmicro microcontroller, 1.5 KB, 20 MHz, DIP-14
MPN PIC16F505-I/P
Manufacturer MICROCHIP
€1.81
incl. 19% VAT · €1.52 excl. VAT
Package
PDIP-14
Specifications
General
Type
Flash-based CMOS
Technology
PIC® Flash
Model
PIC16F505
Design
1-WDT, ICSP
Mounting form
PDIP-14
Specials
CPU clock
20 MHz
Implementation
Memory
1.5
RAM
0.072 kByte
I/O-Pins
12
8-bit Timer
1
Internal oscillator
4 MHz
Electrical values
Supply voltage
+2.0 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F505-I/P
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000869687
HS-Code
85423190
