PIC16F627A
Description:
This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchips powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16F627, PIC16C62XA, PIC16C5X and PIC12CXXX devices. The PIC16F627A features 4MHz internal oscillator, 128 bytes of EEPROM data memory, a capture/compare/PWM, a USART, 2 Comparators and a programmable voltage reference that make it ideal for analog/integrated level applications in automotive, industrial, appliances and consumer applications.
Features:
- Program Memory Type: Flash
- Program Memory Size (KB): 1.75
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 224
- Data EEPROM/HEF (bytes): 128
- Digital Communication Peripherals: 1-UART,
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 CCP,
- Timers: 2 x 8-bit, 1 x 16-bit
- Number of Comparators: 2
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 18
In stock
SKU PIC 16F627A-I/SO

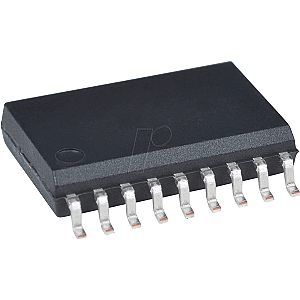

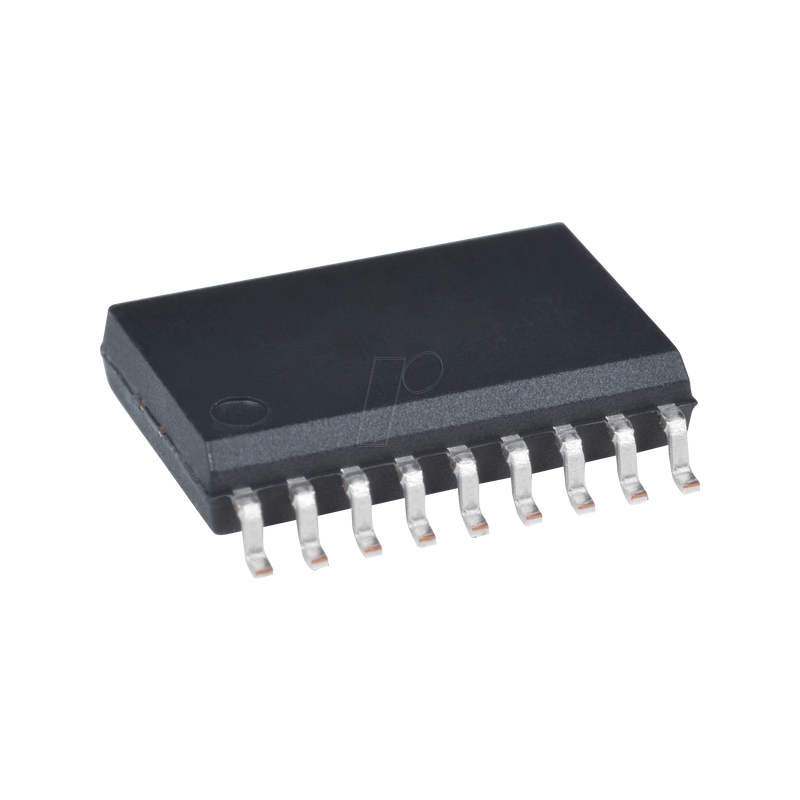

8-bit PICmicro microcontroller, 1.75 KB, 20 MHz, SO-18
MPN PIC16F627A-I/SO
Manufacturer MICROCHIP
€3.28
incl. 19% VAT · €2.76 excl. VAT
Package
SOIC-18
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F627
Design
1-WDT, ICSP
Mounting form
SOIC-18
Memory
1024 x 14
Specials
CPU clock
20 MHz
Implementation
Memory
1.75
RAM
0.224 kByte
EEPROM
128 Byte
I/O-Pins
16
8-bit Timer
2
16-bit Timer
1
PWM
Yes
Internal oscillator
4 MHz
Analog comparator
2
Interfaces
UART
1
Electrical values
Supply voltage
+2.0 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F627A-I/SO
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000869700
HS-Code
85423190
