With an on-board ADC, duel operational amplifier and comparators, this microcontroller device is an excellent solution for signal conditioning and measurement applications.
- Baseline core architecture with 36 instructions
- Two hardware interrupts
- Four stack levels
- Flash program memory with self-reading/writing capability
- Internal 8-MHz oscillator
- Dual operational amplifier module with 3-MHz GBWP
- Dual analogue comparator module
- 8-channel, 8-bit ADC
- Brown-out reset (BOR)
- On-board watchdog timer
- 8-bit timer
- 25-mA source/sink current I/O
- In circuit serial programming (ICSP)
-Operating voltage: (2.0 - 5.5 V)
- Low standby current: 100 nA @ 2.0 V, typically
Out of stock
SKU PIC 16F570-I/SP

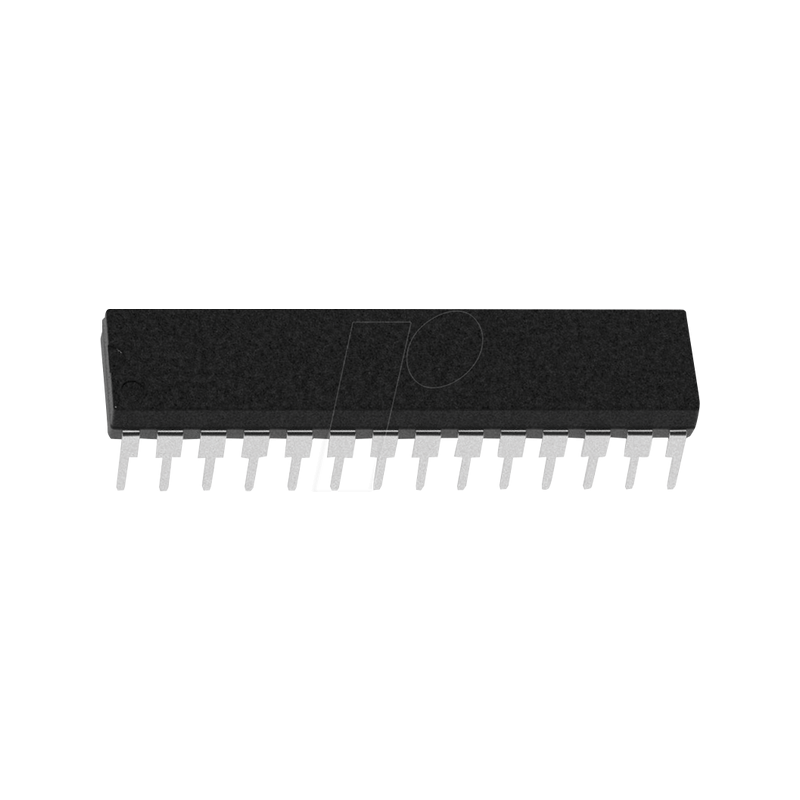

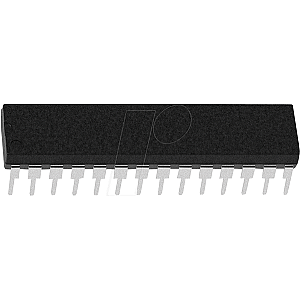

8-bit PICmicro microcontroller, 3 KB, 20 MHz, DIP-28
MPN PIC16F570-I/SP
Manufacturer MICROCHIP
€2.52
incl. 19% VAT · €2.12 excl. VAT
Package
SDIP-28
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F570
Design
WDT, ICSP, BOR, OpA
Mounting form
SDIP-28
Specials
CPU clock
20 MHz
Implementation
Memory
3
RAM
0.064 kByte
EEPROM
132 Byte
I/O-Pins
25
8-bit Timer
1
Internal oscillator
8 MHz
Analog comparator
2
Program Memory
3 KBytes
Interfaces
ODC
8
Electrical values
Supply voltage
+2.0 ... +5.5 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F570-I/SP
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900001449475
HS-Code
85423190
