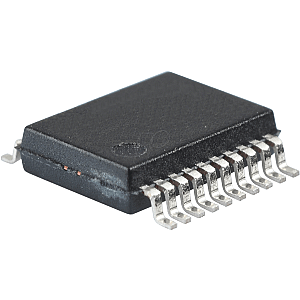

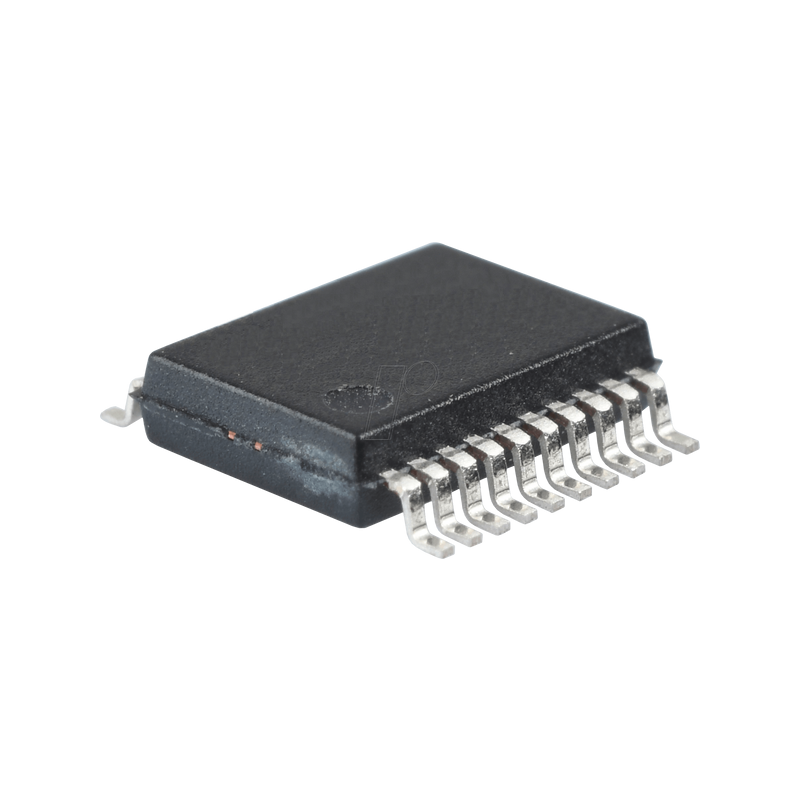

8-bit PICmicro microcontroller, 32 KB, 64 MHz, SSOP-20

PIC18F04/05/06/14/15/16Q41, Low-Power, High-Performance Microcontroller with XLP Technology

Description
The PIC18-Q41 family of Microcontrollers (MCUs) combines sophisticated analog peripherals and powerful Core Independent Peripherals (CIPs) for small, high-performance data acquisition and sensor interfacing applications. Available in small 14- and 20-pin packages, these MCUs are equipped with an Operational Amplifier (OPA), a 12-bit Analog-to-Digital Converter with Computation (ADCC), and 8-bit Digital-to-Analog Converters (DACs) providing a high level of analog integration for amplification, filtering and signal conditioning. With our comprehensive development tool suite, you can easily configure peripherals and functions, generate application code and simulate analog circuits prior to hardware prototyping reducing your development time and time to market. PIC18-Q41 MCUs are well suited for IoT edge nodes, medical, wearables, LED lighting, home automation, automotive and industrial process control. If a cost-effective MCU with comparable performance is needed, PIC18-Q40 MCUs are a good option.

Key Features
- 64 MHz internal oscillator
- Operational amplifier
- 8-bit buffered DAC
- 12-bit ADC with Computation (ADCC)
- Hardware Capacitive Voltage Divider (CVD) for touch sensing applications
- Two Analog comparators
- Up to 64 KB Flash program memory
- 512 B data EEPROM
- Up to 4 KB data SRAM
- Four Direct Memory Access (DMA)
- Three 16-bit dual PWMs
- Four Configurable Logic Cells (CLC)
- 32-bit Cyclic Redundancy Check (CRC) for reliable data/program memory monitoring
- Peripheral Pin Select (PPS)
- Three UART (one UART supports LIN/DMX/DALI protocols), SPI, I²C interfaces
