Microchip PIC controller - high-performance RISC CPU
Microchip supports the complete performance range of 8-bit, 16-bit and 32-bit microcontrollers with powerful architecture, flexible storage technologies and extensive user-friendly development tools, as well as complete technical documentation. The advantages of Microchip microcontroller solutions are quite clear:
- All PIC® MCUs and dsPIC® DSCs enable your design projects to be scaled up or down
- The upwards-compatible architecture secures your investment in code development
- Switch easily between 8-bit, 16-bit and 32-bit families
- Pin compatibility between enclosure variants
- Low-risk product development
Rapid time-to-market cycles
Low total system costs
- Many controllers are delivered with a series of interesting functions pre-installed
- Analogue and digital peripherals can be integrated with minimal component costs
In stock
SKU PIC 16F1503-I/P

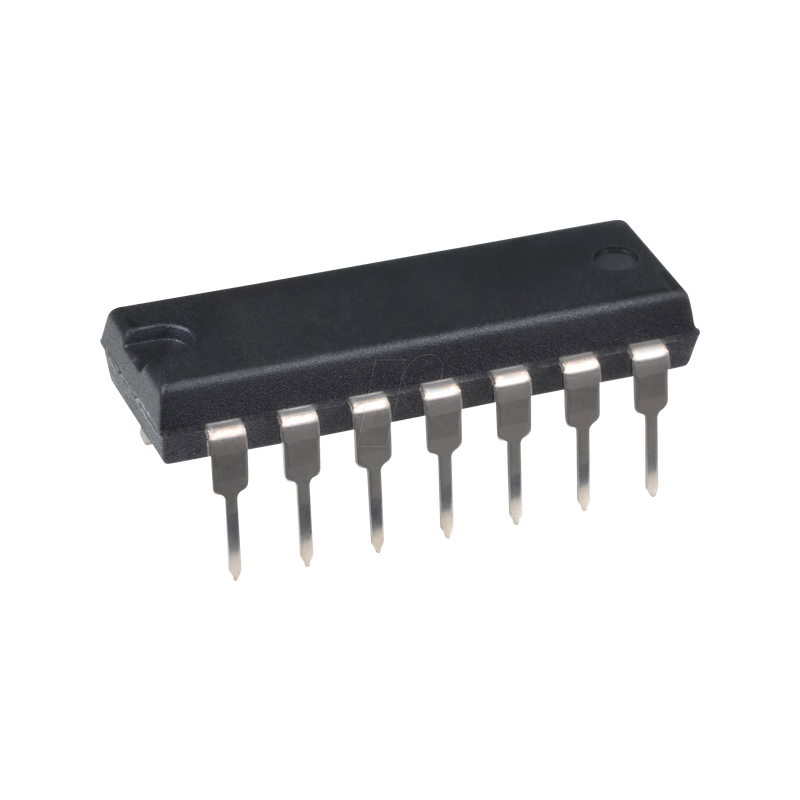

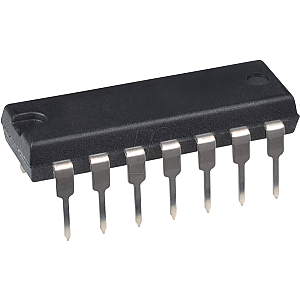

8-bit PICmicro microcontroller, 3.5 KB, 20 MHz, DIP-14
MPN PIC16F1503-I/P
Manufacturer MICROCHIP
€2.03
incl. 19% VAT · €1.71 excl. VAT
Package
PDIP-14
Specifications
General
Type
8-Bit Mikrocontroller
Technology
PIC® Flash
Model
PIC16F1503
Design
1-WDT, ICSP
Mounting form
PDIP-14
Specials
CPU clock
20 MHz
Implementation
Memory
3.5
RAM
0.128 kByte
I/O-Pins
12
8-bit Timer
2
16-bit Timer
1
PWM
4
Internal oscillator
16 MHz, 31 kHz
Analog comparator
2
Interfaces
ODC
8
MSSP (SPI/I²C)
1
Electrical values
Supply voltage
+2.3 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F1503-I/P
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001214103
HS-Code
85423190
