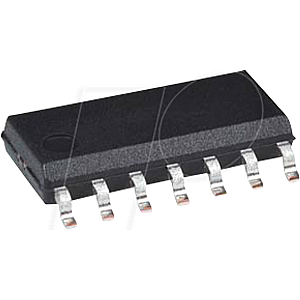

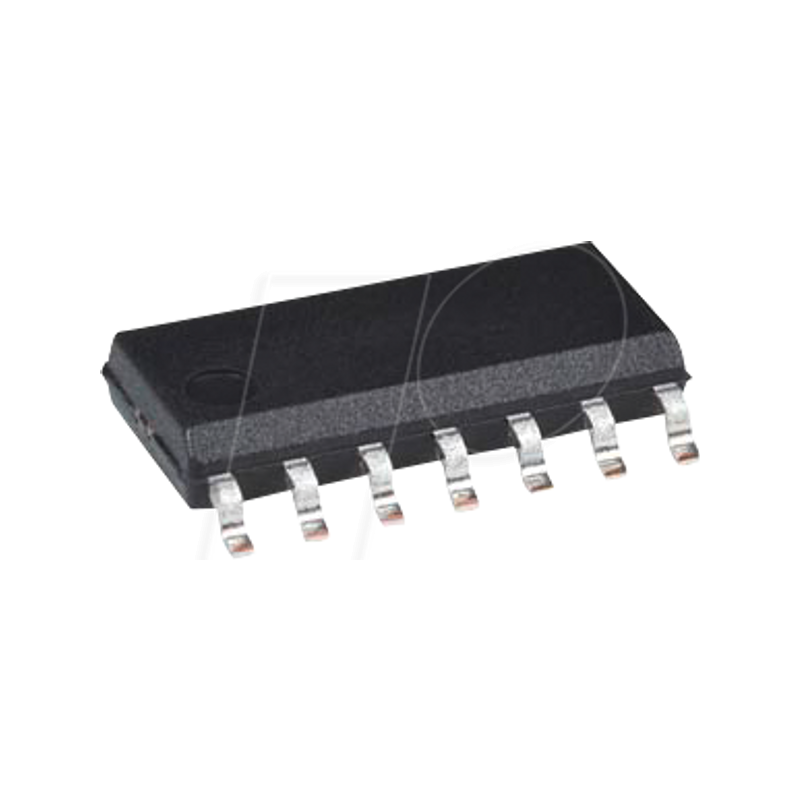

8-bit PICmicro microcontroller, 3.5 KB, 20 MHz, SO-14

PIC16F1613
14-Pin, 8-Bit Flash Microcontroller

Description:
PIC16F1613 microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 14-pin count packages. Features like 10-bit A/D, CCP, 24-bit SMT and Zero-Cross Detection offer an excellent solution to the variety of applications. The product family also has a CRC+ memory scan and Windowed WDT to support safety-critical systems in home appliances, white goods and other end equipment.

Additional Features:
- Program Memory Type: Flash
- Program Memory Size (KB): 3.5
- CPU Speed (MIPS/DMIPS): 8
- SRAM (B): 256
- Capture/Compare/PWM Peripherals: 2 Input Capture, 2 CCP,
- Timers: 4 x 8-bit, 1 x 16-bit
- ADC Input: 8 ch, 10-bit
- Number of Comparators: 2
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 1.8 to 5.5
- Pin Count: 14
- Low Power: Yes

Additional Features:
- Flash Program Memory with self read/write capability
- Enhanced Mid-Range Core, Internal 32MHz oscillator
- High Endurance Flash Memory (HEF)
- 128 B of Non-volatile Data Storage
- 2 x 24-bit Signal Measurement Timer (SMT)
- 2 x Capture-Compare-PWM (CCP)
- 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
- Complementary Waveform Generator (CWG):
- Zero Cross Detection (ZCD)
- Windowed Watchdog Timer (WWDT)
- CRC: 16-bit with DMA
- Power-On Reset (POR), Brown-Out Reset (BOR)
- In Circuit Serial Programming (ICSP)
- Wide Operation Voltage Variant ‘F’ (2.3V - 5.5V)
