Features
- Enhanced mid-range core with 49 instructions, 16 stack levels
- Flash program memory with self read/write capability
- High-endurance data Flash block in lower 128 bytes of program memory (100.000 writes min.)
- Internal 16 MHz oscillator
- MI2C, SPI, EUSART w/auto-baud
- Two CCP (Capture Compare PWM) modules
- 17-channel 10-bit ADC with advanced controls
- 25 mA source/sink current I/O
- Two 8-bit timers (TMR0/TMR2)
- One 16-bit timer (TMR1)
- Extended watchdog timer (WDT)
- Enhanced power-on/off reset
- Programmable ultra low-power brown-out reset (ULPBOR)
- In-circuit serial programming (ICSP)
- In-circuit debug
- PIC16LF1513 (1.8 V - 3.6 V)
- PIC16LF1513 (2.3 V - 5.5 V)
In stock
SKU PIC 16F1513-I/SO

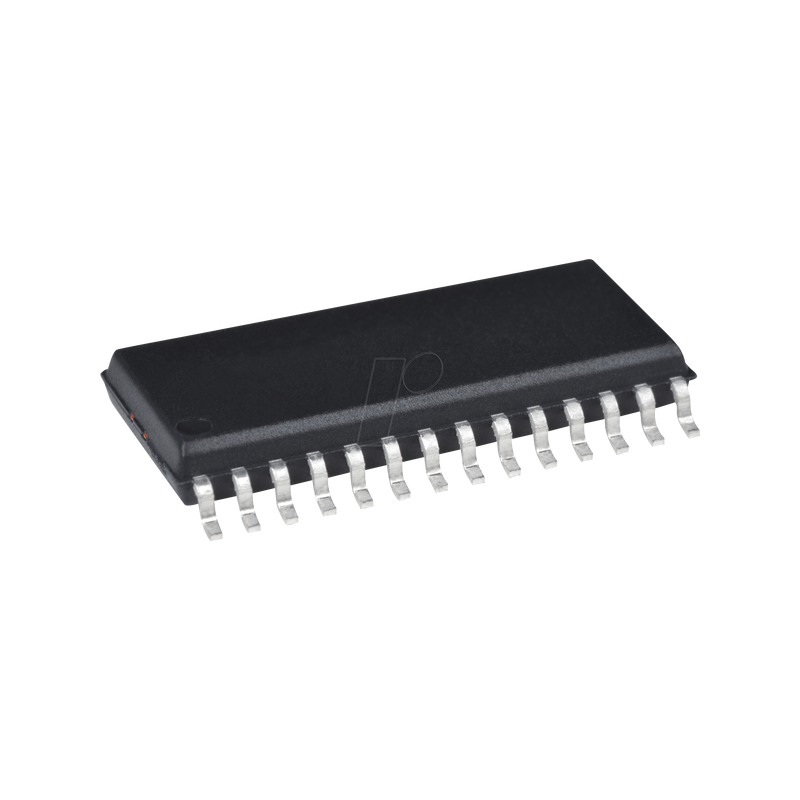

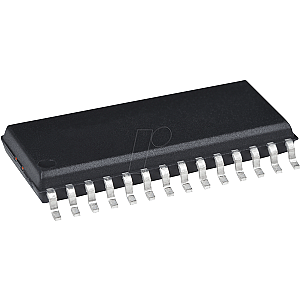

8-bit PICmicro microcontroller, 7 KB, 20 MHz, SO-28
MPN PIC16F1513-I/SO
Manufacturer MICROCHIP
€2.52
incl. 19% VAT · €2.12 excl. VAT
Package
SOIC-28
Specifications
General
Type
8-Bit Mikrocontroller
Technology
PIC® Flash
Model
PIC16F151
Design
WDT, ICSP, BOR
Mounting form
SOIC-28
Specials
CPU clock
20 MHz
Implementation
Memory
7
RAM
0.256 kByte
I/O-Pins
25
8-bit Timer
2
16-bit Timer
1
PWM
2
Internal oscillator
16 MHz, 32 kHz
Program Memory
7 KBytes
Interfaces
I²C
1
SPI
1
ODC
17
I/O/USART
1
MSSP (SPI/I²C)
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F1513-I/SO
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001463884
HS-Code
85423190
