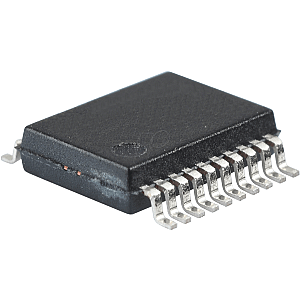

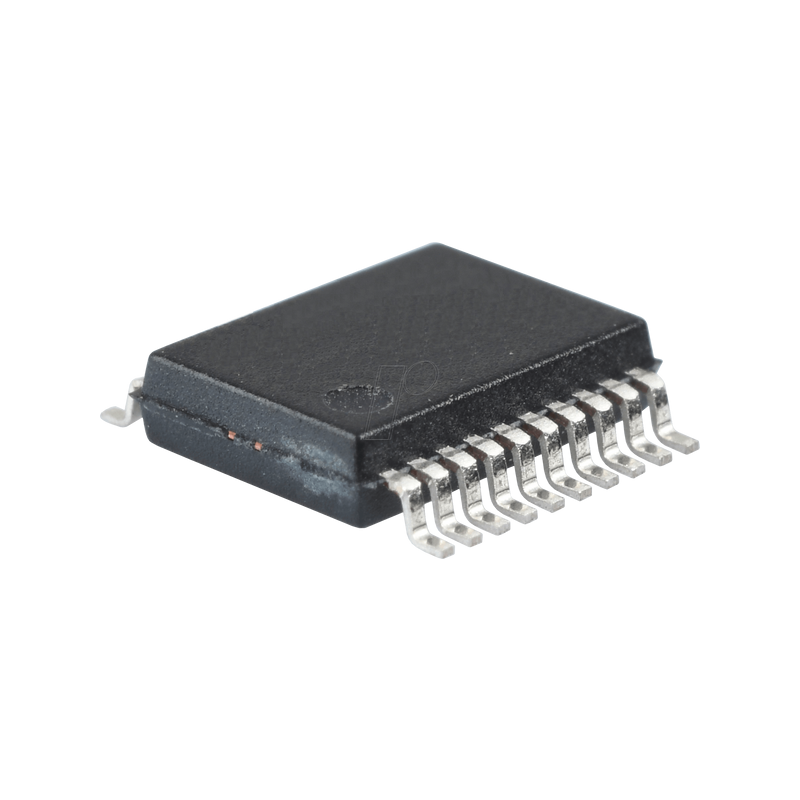

8-bit PICmicro microcontroller, 7 KB, 20 MHz, SSOP-20

PIC16F690

Description:
The Low Pin-count (20) PIC® Flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM Data Memory, and nanoWatt Technology. Standard analog peripherals include up to 12 channels of 10-bit A/D, an analog comparator module with two comparators, programmable on-chip voltage reference, and an Enhanced Capture/Compare/PWM (ECCP+) w/dead band delay, auto-shutdown and restart options.

Features:
- 4-ch PWM 10-bit
- Extended WDT
- Precision internal oscillator-software selectable 8 MHz - 32 KHz
- nanoWatt Technology
- Software selectable BOR
- SSP w/ I2C™Compatible Address mask option
- EUSART LIN 2.0 Compatible
- ECCP+ w/ PWM Steering
- ULPW
- Enhanced Low Power Timer 1
- Timer 1 Gate Synch Latch

Parametrics:
- Program Memory Type: Flash
- Program Memory Size (KB): 7
- CPU Speed (MIPS/DMIPS): 5
- SRAM (B): 256
- Data EEPROM/HEF (bytes): 256
- Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-SSP(SPI/I2C)
- Capture/Compare/PWM Peripherals: 1 Input Capture, 1 ECCP,
- Timers: 2 x 8-bit, 1 x 16-bit
- ADC Input: 12 ch, 10-bit
- Number of Comparators: 2
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 2 to 5.5
- Pin Count: 20
