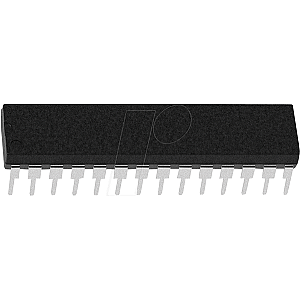

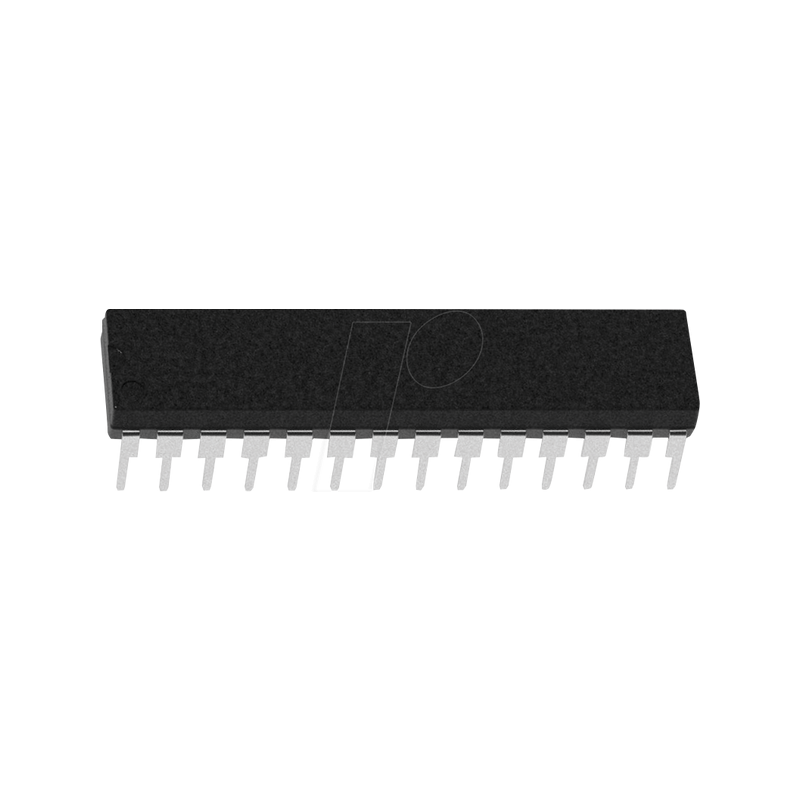

8-bit PICmicro microcontroller, 7 KB, 32 MHz, DIP-28

28-Pin 8-Bit Advanced Analog Flash Microcontroller

High-Performance RISC CPU:
- Only 49 Instructions
- Operating Speed:
- DC - 32 MHz clock input
- DC - 125 ns instruction cycle
- Interrupt Capability with Automatic Context Saving
- 16-Level Deep Hardware Stack with optional Overflow/Underflow Reset
- Direct, Indirect and Relative Addressing modes:
- Two full 16-bit File Select Registers (FSRs)
- FSRs can read program and data memory

General Microcontroller Features:
- Power-Saving Sleep mode
- Power-on Reset (POR)
- Power-up Timer (PWRT)
- Oscillator Start-up Timer (OST)
- Brown-out Reset (BOR) with Selectable Trip Point
- Extended Watchdog Timer (WDT)
- In-Circuit Serial ProgrammingTM (ICSPTM)
- In-Circuit Debug (ICD)
- Enhanced Low-Voltage Programming (LVP)
- Operating Voltage Range:
- 1.8V to 3.6V (PIC16LF1782/3)
- 2.3V to 5.5V (PIC16F1782/3)

Memory Features:
- Up to 4 KB Flash Program Memory:
- Self-programmable under software control
- Programmable code protection
- Programmable write protection
- 256 Bytes of Data EEPROM
- Up to 512 Bytes of RAM

Extreme Low-Power Management PIC16LF1782/3 with XLP:
- Sleep mode: 50 nA @ 1.8V, typical
- Watchdog Timer: 500 nA @ 1.8V, typical
- Timer1 Oscillator: 500 nA @ 32 kHz
- Operating Current:
- 8µA @ 32 kHz, 1.8V, typical
- 32µA/MHz @ 1.8V, typical

High Performance PWM Controller:
- Two Programmable Switch Mode Controller (PSMC) modules

Analog Peripheral Features:
- Analog-to-Digital Converter (ADC):
- Fully differential 12-bit converter
- Up to 75 ksps conversion rate
- 11 single-ended channels
- 5 differential channels
- 8-bit Digital-to-Analog Converter (DAC)
- Three High-Speed Comparators
- Two Operational Amplifiers:
- Rail-to-rail inputs/outputs
- Fixed Voltage Reference (FVR):
- 1.024V, 2.048V and 4.096V output levels
- Internal connection to ADC, comparators and
DAC

I/O Features:
- 25 I/O Pins and 1 Input-only Pin

Digital Peripheral Features:
- Timer0: 8-Bit Timer/Counter with 8-Bit
- Enhanced Timer1: 16-bit timer/counter with prescaler
- Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
- Two Capture/Compare/PWM modules (CCP):
- 16-bit capture, maximum resolution 12.5 ns
- 16-bit compare, max resolution 31.25 ns
- 10-bit PWM, max frequency 32 kHz
- Master Synchronous Serial Port (SSP) with SPI and I2CTM
- Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART):
- RS-232, RS-485 and LIN compatible
