The CAP1208 is a turnkey capacitive touch controller providing a wide variety of button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.
Key features:
- Eight capacitive touch sensor inputs
- Programmable sensitivity
- Automatic recalibration
- Low-power operations
- 8-KV protection
Communication interface
- I²C™ and SMBus
- Operating conditions:
- 3.0 V to 5.5 V
Package type
- 16-pin QFN

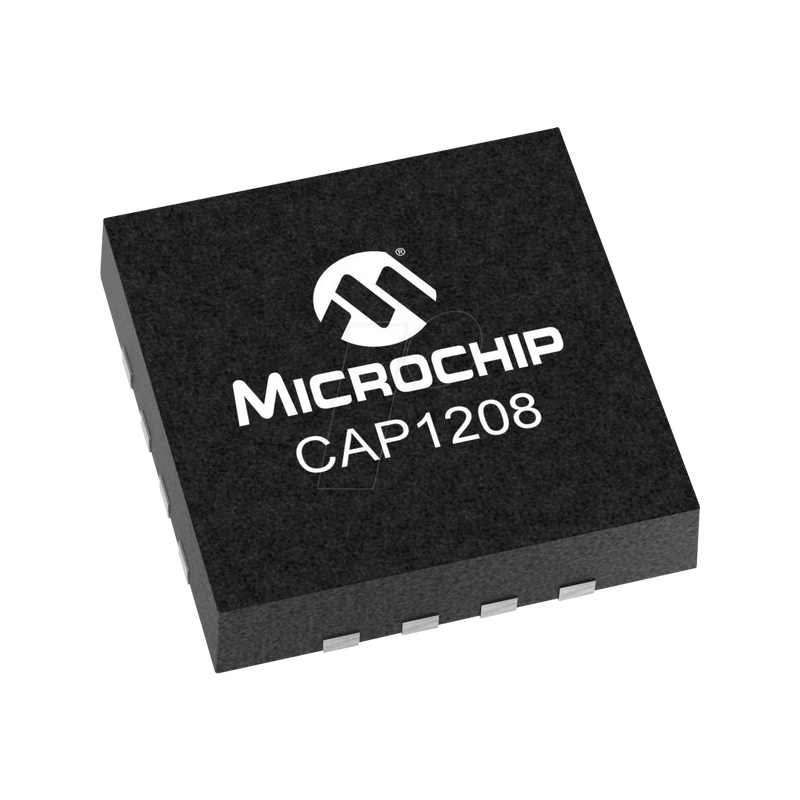

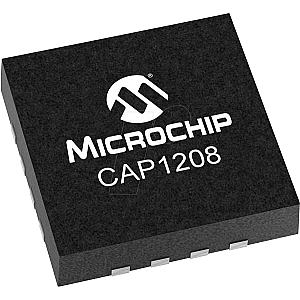

8-channel touch controller, capacitive, QFN-16
€2.01CAP 1208-1-A4TR
Technical information
| General | |
|---|---|
| Model | Driver |
| Type | Touch-Controller |
| Design | 8-channel |
| Mounting form | QFN-16 |
| Electrical values | |
| Supply voltage | 3 .. 5.5 VDC |
| Other | |
| Temperature range | 0..85 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | CAP1208-1-A4-TR |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001463495 |
| HS-Code | 85423990 |
