The CAP1206 is a turnkey capacitive touch controller providing a wide variety of button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.
Key features:
- Six capacitive touch sensor inputs
- Programmable sensitivity
- Automatic recalibration
- Low-power operations
- 8-KV protection
Communication interface:
- I²C™ and SMBus
Operating conditions:
- 3.0 V to 5.5 V
Package type:
- 10-pin 3x3 DFN

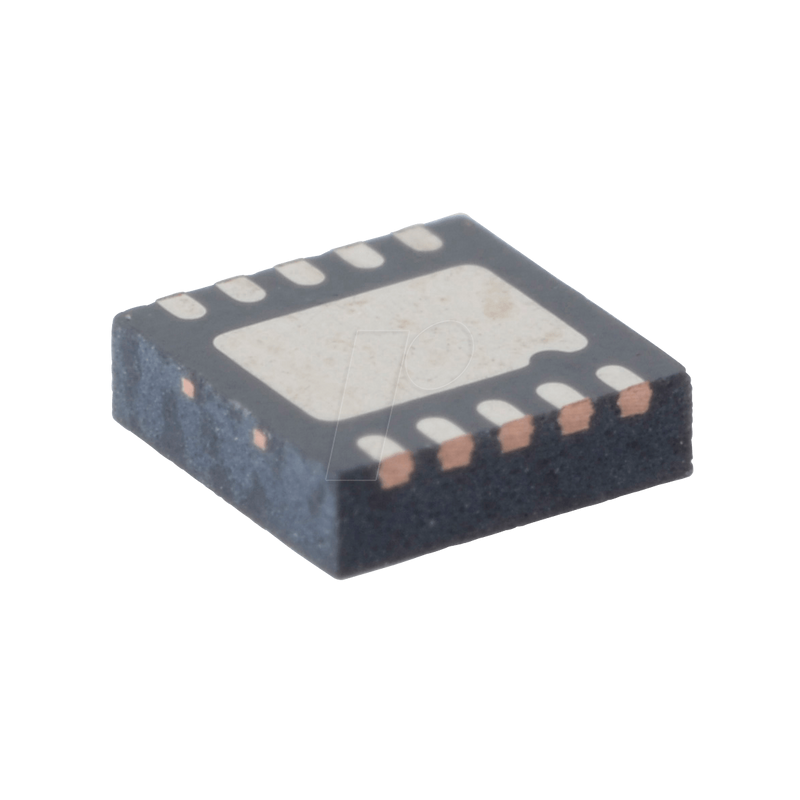

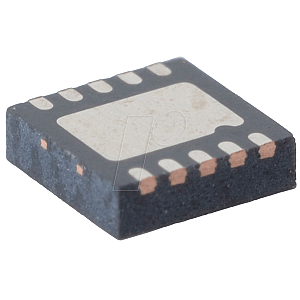

8-channel touch controller, capacitive, VDFN-10
€1.43CAP 1206-1-AIATR
Technical information
| General | |
|---|---|
| Model | Driver |
| Type | Touch-Controller |
| Design | 6-channel |
| Mounting form | DFN-10 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | CAP1206-1-AIA-TR |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001463488 |
| HS-Code | 85423990 |
