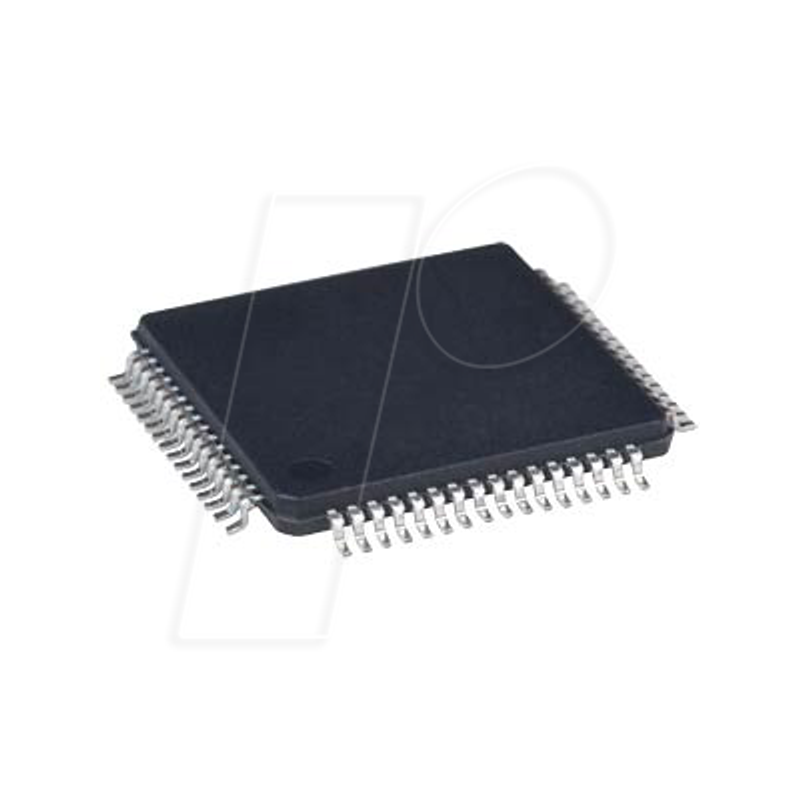

8/16-bit ATMega AVR® microcontroller, 128 KB, 32 MHz, TQFP-64

ATXMEGA128A3U

Description
Low power, high performance 8/16-bit AVR microcontroller featuring 128KB self-programming flash program memory, 8KB boot code section, 8KB SRAM, 2048-Byte EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system, and up to 32 MIPS throughput at 32MHz. The AVR XMEGA A3 series features 64-pin packages. The device can be used in a wide range of applications, such as building, industrial, motor, board, and climate control; hand-held battery applications; factory automation; power tools; HVAC; networking, metering, large home appliances, and optical and medical devices.

Features
- Program Memory Type: Flash
- Program Memory Size (KB): 128
- CPU Speed (MIPS/DMIPS): 32
- SRAM (KB): 8
- Data EEPROM/HEF (bytes): 2048
- Digital Communication Peripherals: 7-UART, 10-SPI, 2-I2C
- Capture/Compare/PWM Peripherals: 22 Input Capture, 22 CCP, 22PWM
- Number of Comparators: 4
- Number of USB Modules: 1
- Temperature Range (°C): -40 to 85
- Operating Voltage Range (V): 1.6 to 3.6
- Pin Count: 64
- Low Power: Yes
