LNK362-364 LinkSwitch®-XT family
LinkSwitch™-XT features a 700-V power MOSFET
oscillator, a simple ON/OFF control scheme, a high-voltage
switched current source, frequency jittering, cycle-by-cycle current limiting and thermal shutdown in a
single monolithic IC. The startup and operating performance is
derived directly from the DRAIN pin, eliminating the need for a bias winding
and associated circuits.
Technical features

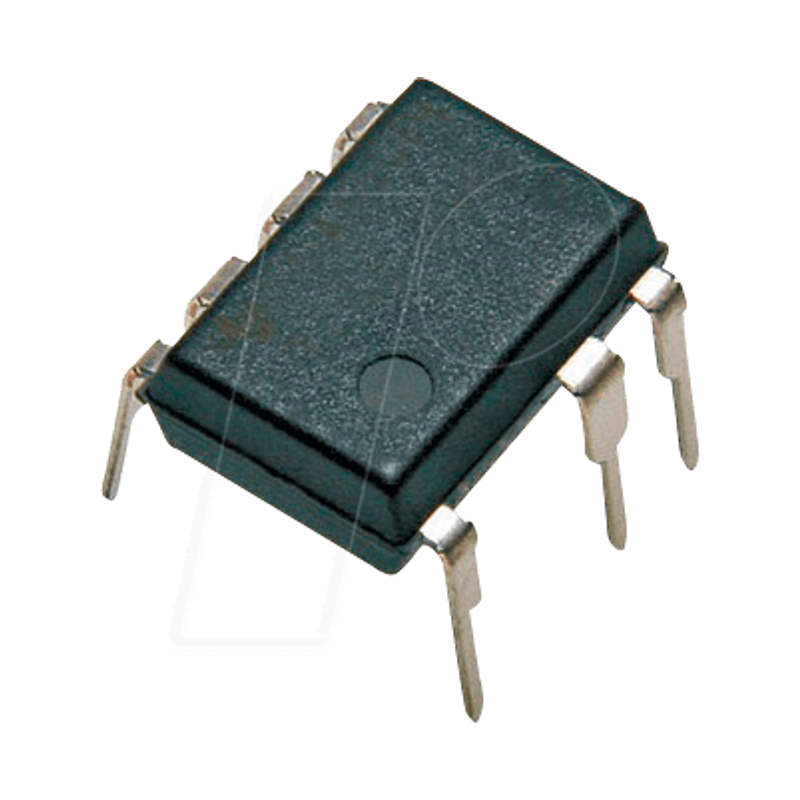

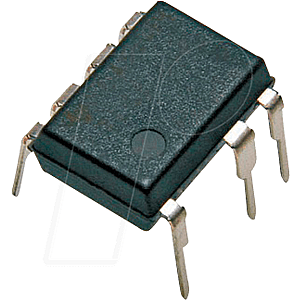

AC/DC offline switch, 85-265 VAC, 200mA, PDIP-8B
€1.13LNK 362PN
Technical information
| General | |
|---|---|
| Model | Wandler |
| Type | AC/DC-Offline-Schalter |
| Design | Buck, Buck-Boost, Flyback |
| Mounting form | DIP-8B-7 |
| Electrical values | |
| Input voltage | 85 - 265 VAC VDC |
| Output Current | 0.2 A |
| Measuring range | |
| Frequency | 132 kHz |
| Other | |
| Temperature range | -40 ... +150 |
| Manufacturer specifications | |
| Manufacturer | POWER INTEGRATIONS |
| Manufacturer ID | LNK362PN |
| Weight | 1.0E-5 kg |
| RoHS | conform |
| EAN/GTIN | 9900003994126 |
| HS-Code | 85423990 |
