LNK362-364 LinkSwitch®-XT family
LinkSwitch™-XT features a 700V power MOSFET.
Oscillator, a simple ON/OFF control scheme, a high voltage
Switched power source, frequency jittering, cycle current limiting and thermal shutdown in one
A monolithic IC. The start-up and operating power is increased
Directly derived from the DRAIN pin, creating a bias winding
There is no need for preload winding and associated circuits.
Technical features

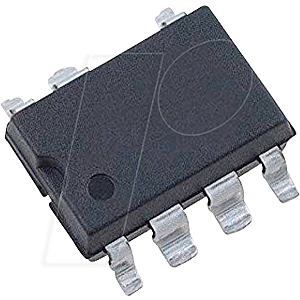

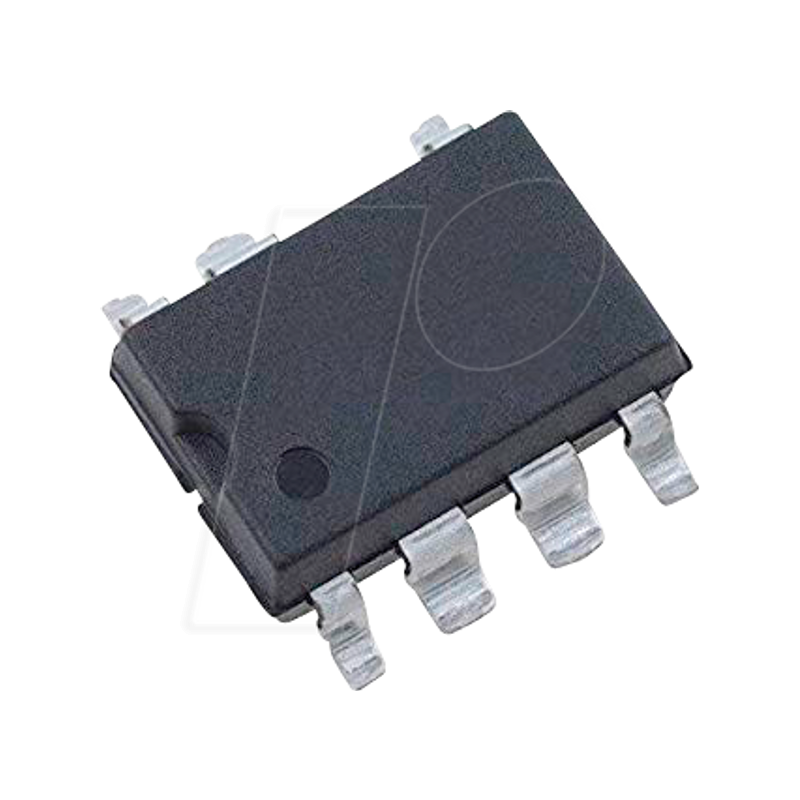

AC/DC offline switch, 85-265 VAC, 200mA, SMD-8B-7
€1.49LNK 362GN
Technical information
| General | |
|---|---|
| Model | Converter |
| Type | AC/DC-Offline-Schalter |
| Design | Buck, Buck-Boost, Flyback |
| Mounting form | SMD-8B-7 |
| Electrical values | |
| Input voltage | 85 - 265 VAC VDC |
| Output Current | 0.2 A |
| Measuring range | |
| Frequency | 132 kHz |
| Other | |
| Temperature range | -40 ... +150 |
| Manufacturer specifications | |
| Manufacturer | POWER INTEGRATIONS |
| Manufacturer ID | LNK362GN |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900003315426 |
| HS-Code | 85423990 |
