Significantly simplifies the design of low-voltage power supply units by eliminating the need for an optocoupler and secondary control circuits.
The LinkSwitch-CV dramatically simplifies the design of CV power supply units with tight CV requirements by eliminating the need for an optocoupler and secondary control circuits. The device introduces a revolutionary control technique to enable very tight output voltage regulation that can withstand fluctuations in input voltage and temperature.
The device includes a 725 V power MOSFET, a novel on/off control machine, a switched high-voltage power source for self-biasing, frequency jittering, cycle-by-cycle current limiting and hysteretic thermal shutdown in a monolithic IC.

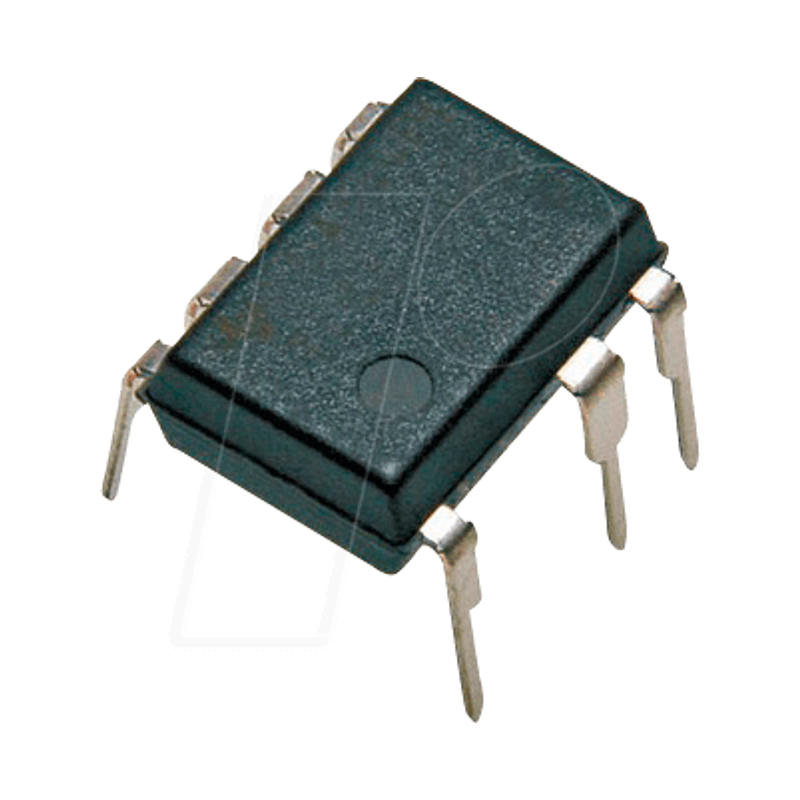

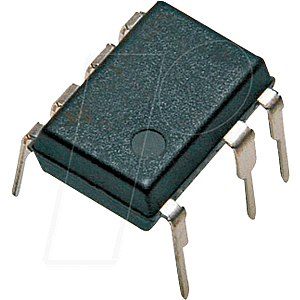

AC/DC offline switch, 85 - 265 VAC, 5 VDC, DIP-7
€1.32LNK 623PG
Technical information
| General | |
|---|---|
| Model | Wandler |
| Design | CV |
| Mounting form | DIP-8B-7 |
| Electrical values | |
| Input voltage | 85 - 265 VAC VDC |
| Output power | 6.5 W |
| Measuring range | |
| Frequency | 100 kHz |
| Other | |
| Temperature range | -40 ... +150 |
| Manufacturer specifications | |
| Manufacturer | POWER INTEGRATIONS |
| Manufacturer ID | LNK623PG |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900003938922 |
| HS-Code | 85423990 |
