16-bit multi-channel delta-sigma analogue/digital converter with I2C interface on-board reference. The MCP3426, MCP3427 and MCP3428 modules are low-noise and very precise 16-bit delta-sigma analogue/digital converters and belong to the MCP342x series from Microchip. These modules convert analogue signals to digital signals with a 16-bit resolution.

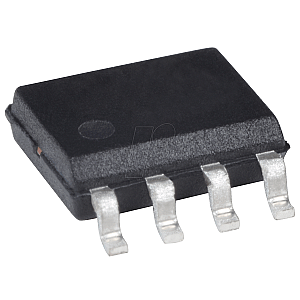

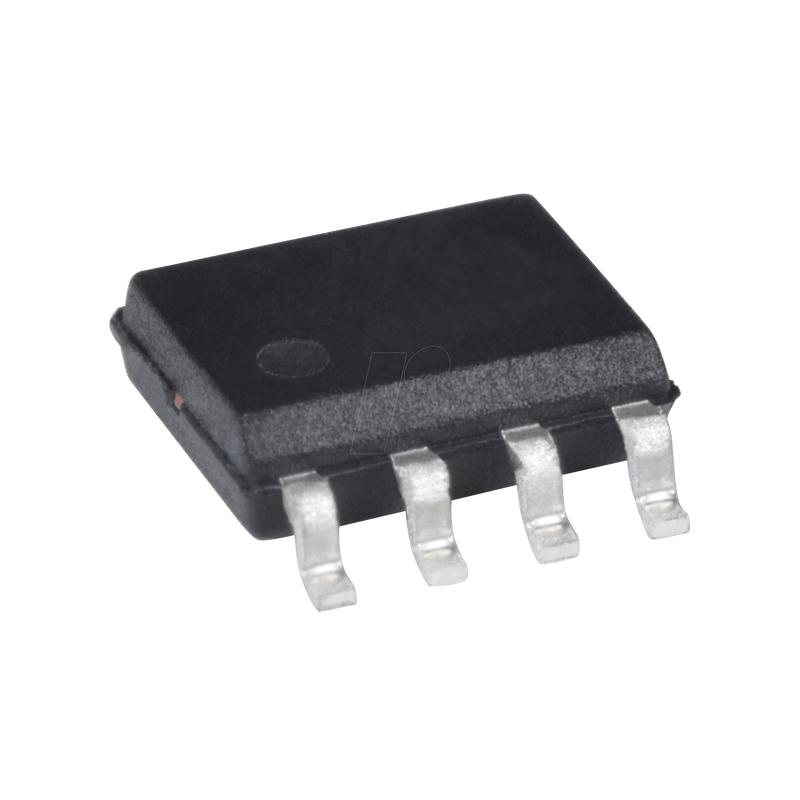

A/D converter, 16-bit, delta sigma, SOIC-8
€3.73MCP 3426A0-E/SN
Technical information
| General | |
|---|---|
| Model | A/D-converter |
| Resolution | 16-Bit |
| Design | 2 channels |
| Mounting form | SO-8 |
| Input | 2 differential |
| Other | |
| Temperature range | -40 ... +125 |
| Electrical values | |
| Frequency | 0.1 MHz |
| Supply voltage | +2.7 ... +5.5 VDC |
| Input current | 145 µ A |
| Output Current | 0.010 A |
| Thermal Resistance | 149.5 °C/W |
| Implementation | |
| Sample rate | 15 SPS |
| Measuring range | |
| Resistor | 25M Ohm |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | MCP3426A0-E/SN |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001097423 |
| HS-Code | 85423990 |
