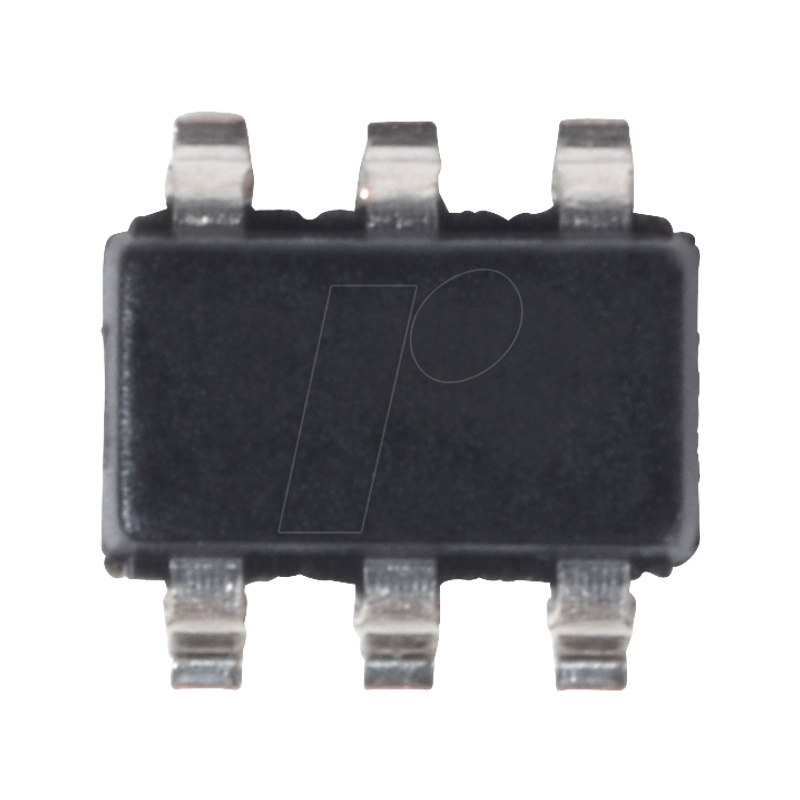

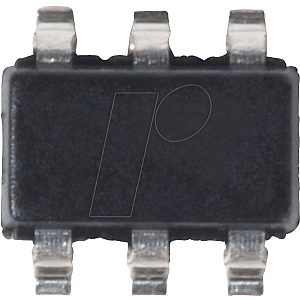

A/D converter- 18-bit- 1-channel- 15SPS
Housing: SOT-23
Manufacturer: Microchip
A/D converter/18-bit/1-channel/15SPS /SOT-23
€2.44MCP 3421A0T-E/CH
- Model
- MCP3421A0T-E/CH
Technical information
| General | |
|---|---|
| Model | A/D-converter |
| Resolution | 18-Bit |
| Design | 1-channel |
| Mounting form | SOT-23-6 |
| Other | |
| Temperature range | -40 ... +85 |
| Electrical values | |
| Frequency | 0.1 MHz |
| Supply voltage | +2.7 ... +5.5 VDC |
| Input current | 155 µ A |
| Implementation | |
| Sample rate | ±1 LSB |
| Measuring range | |
| Resistor | 25M Ohm |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | MCP3421A0T-E/CH |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900000900823 |
| HS-Code | 85423990 |
