14-W Hi-Fi audio amplifier
Housing: Pentawatt 5
In stock
SKU TDA 2030

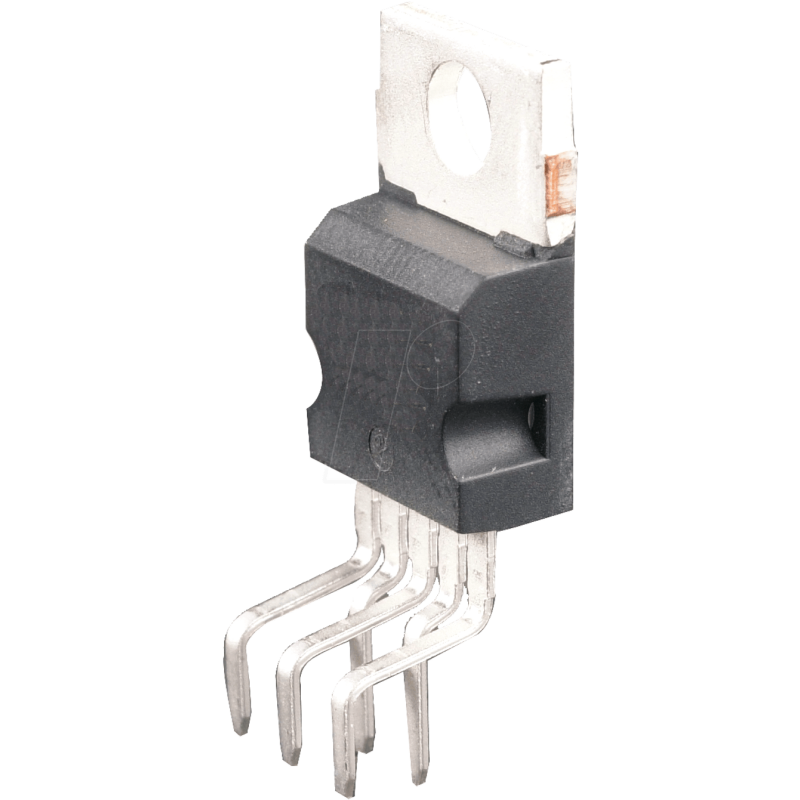

Amplifier, Pentawatt-5
MPN TDA2030
Manufacturer UTC UNISONIC TECHNOLOGIES
€0.99
incl. 19% VAT · €0.83 excl. VAT
Package
TO-220B
Specifications
General
Model
Amplifier
Type
Audio
Design
14 W HiFi
Mounting form
TO-220B
Other
Temperature range
-40 ... +150
Electrical values
Supply voltage
±6 to ±18 or +12 to +36 VDC
Input voltage
±6 to ±18 or +12 to +36 VDC
Output Current
3.5 A
Output power
14 W
Input Resistance
5 M-Ohm
Input Noise Voltage
3 µV
Input Bias Current
2 µA
Power Bandwidth
140 kHz
Suppley Voltage Rejection
50 dB
Closed Loop Voltage Gain
30 dB
Power loss
20 W
Distortion
0.2 %
Settings
Open Loop Voltage Gain
90 dB
Manufacturer specifications
Manufacturer
UTC UNISONIC TECHNOLOGIES
Manufacturer ID
TDA2030
Weight
0.0021 kg
RoHS
conform
EAN/GTIN
9900000206871
HS-Code
85423310
