The DG441 and DG442 monolithic CMOS analog switches are drop-in replacements for the popular DG201A and DG202 series devices. They include four independent single pole single throw (SPST) analog switches, TTL and CMOS compatible digital inputs, and a voltage reference for logic thresholds. These switches feature lower analog ON resistance (<85?) and faster switch time (t ON < 250ns) compared to the DG201A and DG202. Charge injection has been reduced, simplifying sample and hold applications.

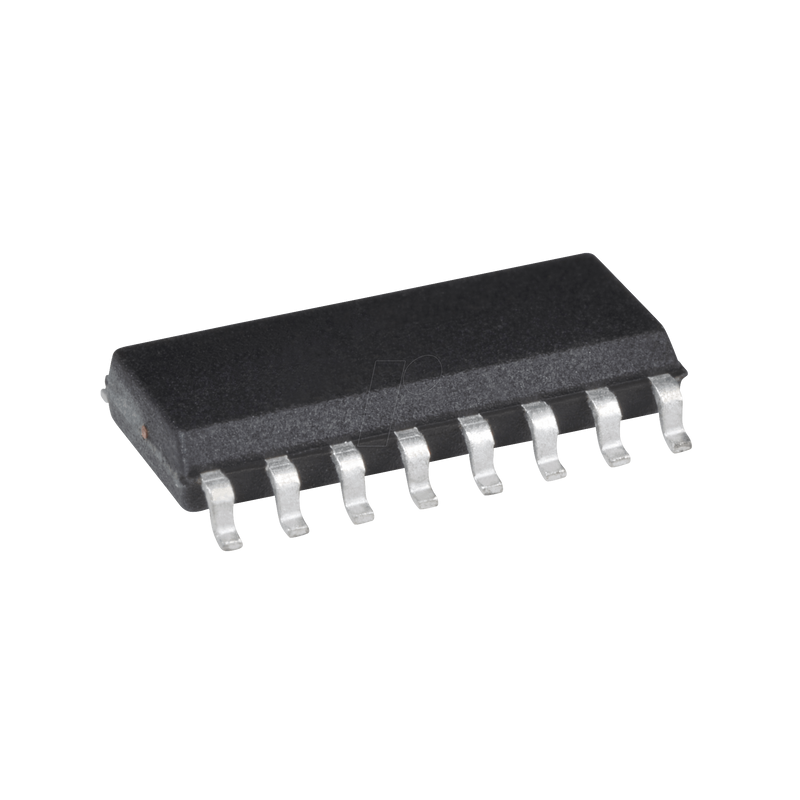

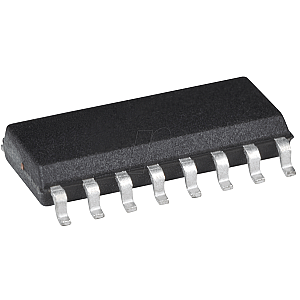

Analogue Switch IC SO-16
€3.16DG 441 DYZ
Technical information
| General | |
|---|---|
| Model | Analogue switch |
| Type | SPST |
| Design | 4-fold |
| Mounting form | SO-16 |
| Other | |
| Temperature range | -40 ... +85 |
| Electrical values | |
| Supply voltage | 5 - 34 / ±5 -20 VDC |
| Manufacturer specifications | |
| Manufacturer | RENESAS |
| Manufacturer ID | DG441DYZ |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001888243 |
| HS-Code | 85423990 |
