The ADG333A is a monolithic CMOS device comprising four independently selectable SPDT switches. It is designed on an LC2MOS process, which provides low power dissipation yet achieves a high switching speed and a low on resistance.
The on resistance profile is very flat over the full analog input range, ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the part suitable for video signal switching. CMOS constructionensures ultralow power dissipation, making the part ideally suited for portable, battery-powered instruments.

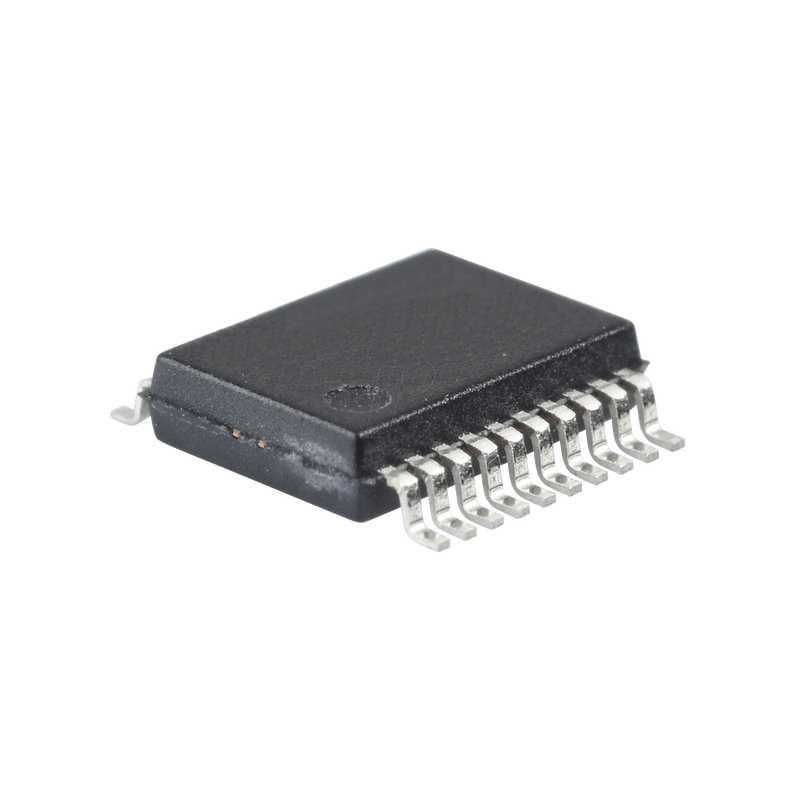

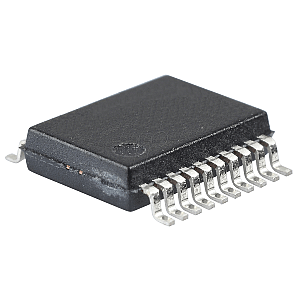

Analogue Switch IC SSOP-20
€12.59ADG 333 ABRSZ
Technical information
| General | |
|---|---|
| Model | Analogue switch |
| Type | SPDT |
| Design | 4-fold |
| Mounting form | SSOP-20 |
| Manufacturer specifications | |
| Manufacturer | ANALOG DEVICES |
| Manufacturer ID | ADG333ABRSZ |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001854965 |
| HS-Code | 85423990 |
