The TS5A23159 is a bidirectional 2-channel single-pole double-throw (SPDT) switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.

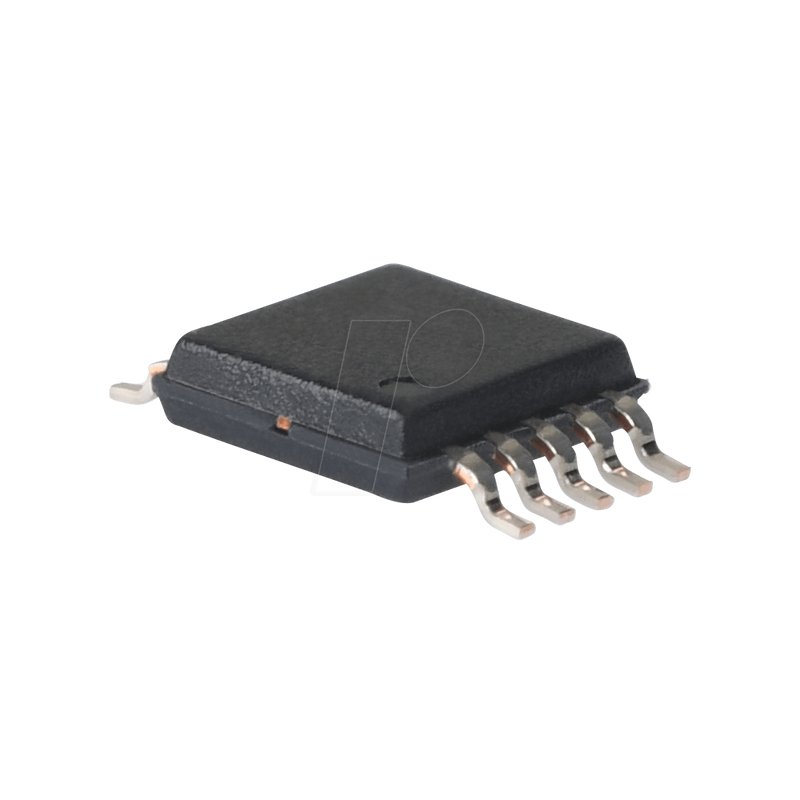

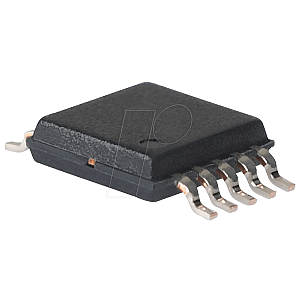

Analogue Switch IC VSSOP-10
€1.26TS 5A23159 DGST
Technical information
| General | |
|---|---|
| Model | Analogue switch |
| Type | SPDT |
| Design | 1-fold |
| Mounting form | VSSOP-10 |
| Other | |
| Temperature range | -40 ... +85 |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | TS5A23159DGST |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001890260 |
| HS-Code | 85423990 |
Safety information
Responsible person for the EU
Economic operator established in the EU, who ensures that the product complies with the required regulations:
Texas Instruments Deutschland GmbH
Haggertystr. 1
85356 Freising, DE
[email protected]
https://www.ti.com
