The ultra-low-power STM32L052x6/8 microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (64 Kbytes of Flash program memory, 2 Kbytes of data EEPROM and 8 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.
In stock
SKU STM32L052R8T6

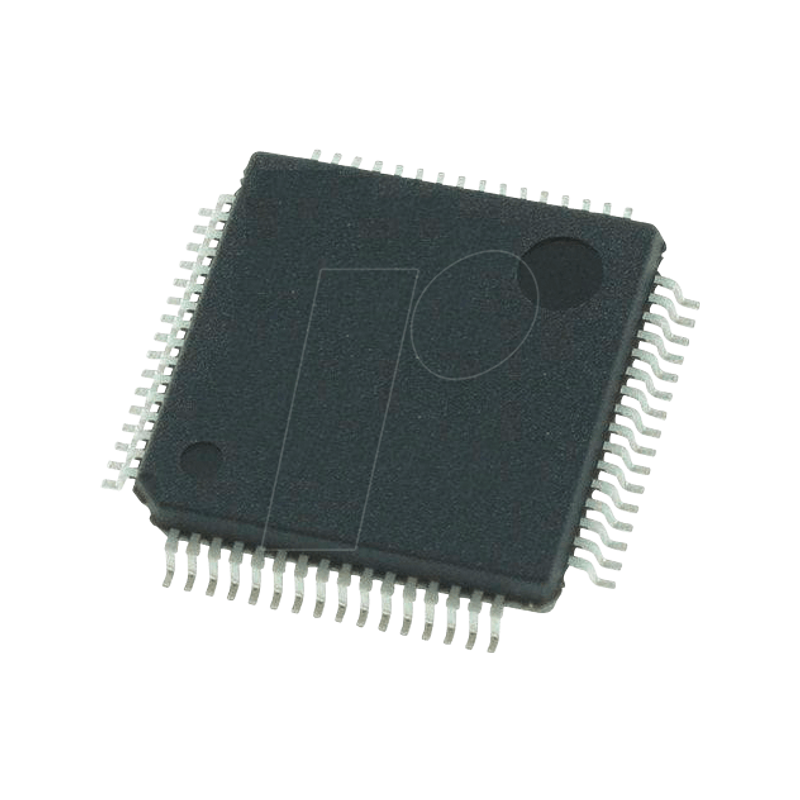

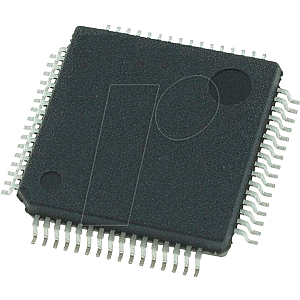

ARM-Cortex-M0+ microcontroller, 32-bit, 1.65 V, 64KB, LQFP-64
MPN STM32L052R8T6
Manufacturer STMICROELECTRONICS
€6.15
incl. 19% VAT · €5.17 excl. VAT
Package
LQFP-64
Specifications
General
Architecture
RISC
Model
Cortex®-M0+
Mounting form
LQFP-64
Design
I2C, SPI, USART
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
32 MHz
Implementation
Memory
64
RAM
8 kByte
I/O-Pins
51
Timer
Yes
16-bit Timer
4
EEPROM
2 Kbyte
Electrical values
Supply voltage
1.65 ... 3.6 VDC
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
I²C
2
SPI
2
I/O/USART
2
USB
Yes
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32L052R8T6
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900002734044
HS-Code
85423190
