The STM32L5 series is based on the 32bit ARM Cortex® M33 core with ARM® TrustZone® hardware that provides cyber protection for sensitive code such as cryptographic keys in addition to authentication of connected devices. A protected processing environment is set up, to which any I/O port, peripheral function and memory area can be optionally assigned.
The ARM-Cortex®-M33 microcontroller sets new standards in ultra-low power efficiency.
Special features:
In stock
SKU STM32L562ZET6Q

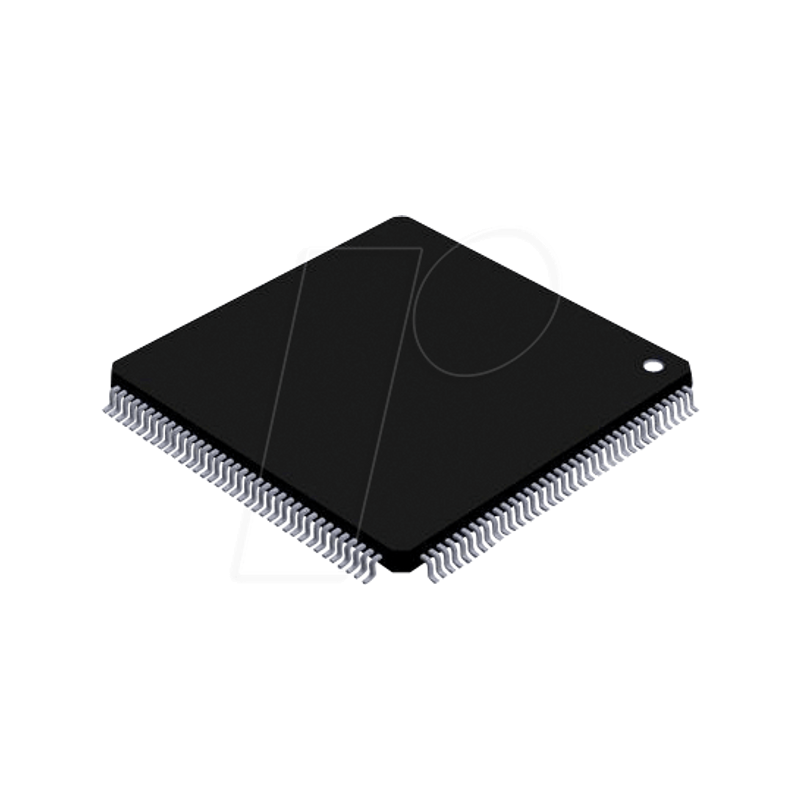

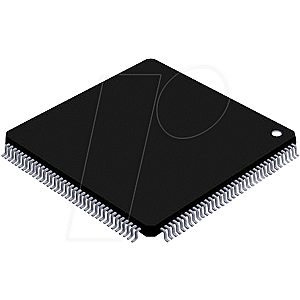

ARM-Cortex®-M33 microcontroller, 32bit, 1.7V, 512KB,LQFP-144
MPN STM32L562ZET6Q
Manufacturer STMICROELECTRONICS
€8.31
incl. 19% VAT · €6.98 excl. VAT
Package
LQFP-144
Specifications
General
Architecture
RISC
Model
Cortex®-M33
Mounting form
LQFP-144
Design
I2C, SPI, USART
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
110 MHz
Implementation
Memory
512
RAM
256 kByte
I/O-Pins
115
Timer
Yes
8-bit Timer
7
16-bit Timer
5
32-bit Timer
2
Internal oscillator
Yes
Electrical values
Supply voltage
1.7 ... 3.6 VDC
Supply Voltage Min.
6 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
ODC
2
I²C
4
SPI
3
UART
1
I/O/USART
5
USB
Yes
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32L562ZET6Q
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002767615
HS-Code
85423190
