ST has developed a new architecture to achieve the best levels of ultra-low power thanks to its high flexibility. STM32L4 MCUs have achieved 447 ULPMark-CP and 167 ULPMark-PP in standardized EEMBC™ ULPMark® tests, which compare the efficiency of ultra-low power microcontrollers. In addition, the STM32L4 series breaks the performance limits in the world of ultra-low-power microcontrollers. It delivers 100 DMIPS based on its Arm® Cortex®-M4 core with FPU and ST ART Accelerator™ at 80 MHz.
The STM32L4 microcontrollers offer dynamic voltage scaling to balance power consumption with processing needs, low power peripherals (LP UART, LP timers) available in stop mode, security features, intelligent and numerous peripherals, advanced low power analog peripherals such as op amplifiers, comparators, LCD, 12-bit DACs and 16-bit hardware oversampling (ADCs).
In stock
SKU STM32L431CCT6

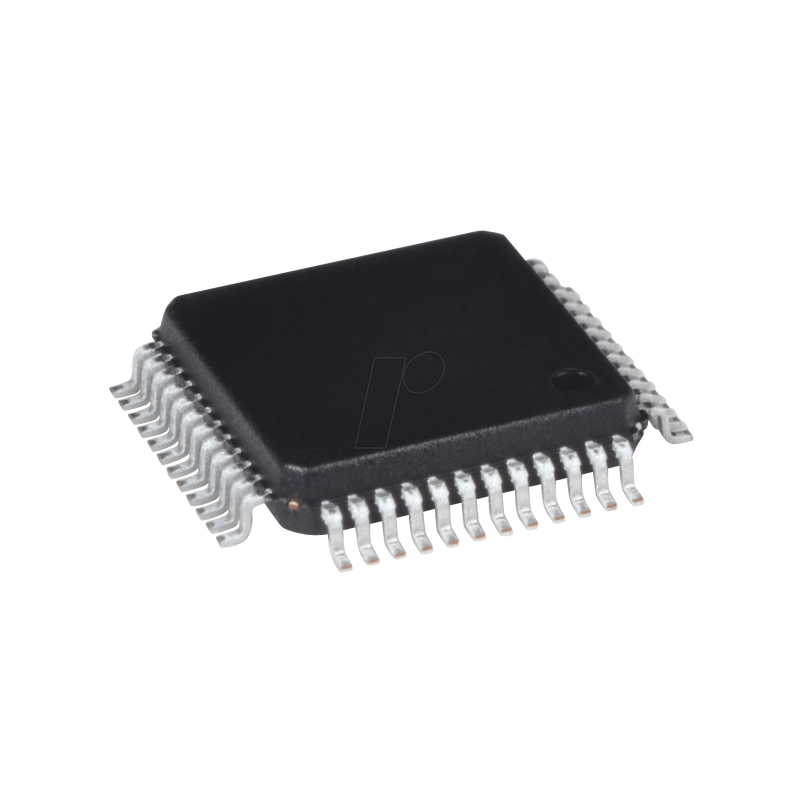

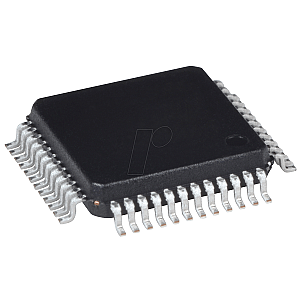

ARM-Cortex®-M4 microcontroller, 32bit, 1.7V, 256KB,LQFP-48
MPN STM32L431CCT6
Manufacturer STMICROELECTRONICS
€6.82
incl. 19% VAT · €5.73 excl. VAT
Package
LQFP-48
Specifications
General
Architecture
RISC
Model
Cortex®-M4
Mounting form
LQFP-48
Design
I2C, SPI, USART
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
80 MHz
Implementation
Memory
256
RAM
64 kByte
I/O-Pins
38
Timer
Yes
16-bit Timer
7
32-bit Timer
1
Electrical values
Supply voltage
1.7 ... 3.6 VDC
Supply Voltage Min.
3 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
I²C
3
SPI
3
I/O/USART
3
USB
Yes
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32L431CCT6
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003534278
HS-Code
85423190
