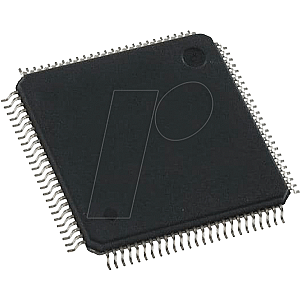

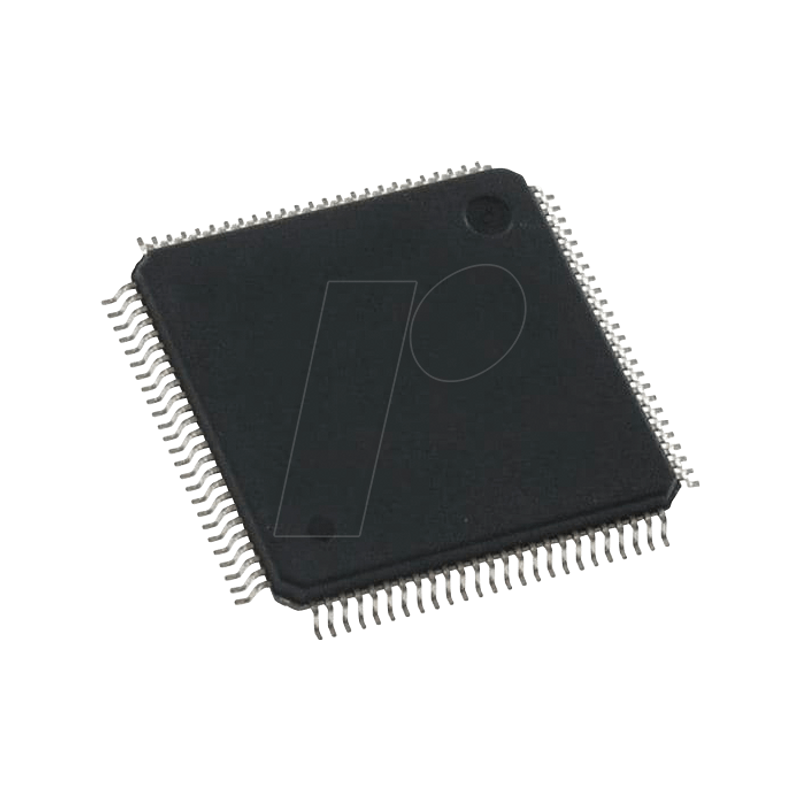

ARM7TDMI microcontroller, 32-bit, 1.8 V, 512KB, 55MHz, LQFP-100

Summary

The Microchip's ARM-based SAM7X512 is a member of the Microchip SAM7X series of microcontrollers based on the 32-bit ARM7TDMI processor. It operates at a maximum speed of 55 MHz and features 512KB of flash memory and 128KB of SRAM. The 512KB of flash are split in two banks of 256KB. The peripheral set includes USB 2.0 Full Speed device port, Ethernet MAC 10/100Base T port, CAN 2.0A and 2.0B compliant controller, two USARTs, UART, two SPI, SSC, TWI (I2C), three 16-bit timers, RTT and 8x10-bit ADC. Typical core supply is 1.8V, I/Os are supplied at 1.8V or 3.3V and are 5V tolerant. An integrated voltage regulator allows single supply at 3.3V. The SAM7X128 is supplied in 100-lead LQFP and TFBGA packages.

Features

- Incorporates the ARM7TDMI ARM Thumb® Processor High-performance 32-bit RISC Architecture
- High-density 16-bit Instruction Set, Leader in MIPS/Watt
- EmbeddedICE™ In-circuit Emulation, Debug Communication Channel Support
- Internal High-speed Flash
- 512 Kbytes (SAM7X512) Organized in Two Banks of 1024 Pages of 256 Bytes (Dual Plane)
- Internal High-speed SRAM, Single-cycle Access at Maximum Speed
- 128 Kbytes (SAM7X512)
- Memory Controller (MC)
- Reset Controller (RSTC)
- Clock Generator (CKGR)
- Power Management Controller (PMC)
- Advanced Interrupt Controller (AIC)
- Debug Unit (DBGU)
- Periodic Interval Timer (PIT)
- 20-bit Programmable Counter plus 12-bit Interval Counter
- Windowed Watchdog (WDT)
- Real-time Timer (RTT)
- Two Parallel Input/Output Controllers (PIO)
- Sixty-two Programmable I/O Lines Multiplexed with up to Two Peripheral I/Os
- Thirteen Peripheral DMA Controller (PDC) Channels
- One USB 2.0 Full Speed (12 Mbits per second) Device Port
- One Ethernet MAC 10/100 base-T
- One Part 2.0A and Part 2.0B Compliant CAN Controller
- One Synchronous Serial Controller (SSC)
- Two Universal Synchronous/Asynchronous Receiver Transmitters (USART)
- Two Master/Slave Serial Peripheral Interfaces (SPI)
- One Three-channel 16-bit Timer/Counter (TC)
- One Four-channel 16-bit Power Width Modulation Controller (PWMC)
- One Two-wire Interface (TWI)
- One 8-channel 10-bit Analog-to-Digital Converter, Four Channels Multiplexed with Digital I/Os
- SAM-BA® Boot Assistance
- IEEE® 1149.1 JTAG Boundary Scan on All Digital Pins
- 5V-tolerant I/Os, Including Four High-current Drive I/O lines, Up to 16 mA Each
- Power Supplies
- Embedded 1.8V Regulator, Drawing up to 100 mA for the Core and External Components
- 3.3V VDDIO I/O Lines Power Supply, Independent 3.3V VDDFLASH Flash Power Supply
- 1.8V VDDCORE Core Power Supply with Brownout Detector
- Fully Static Operation: Up to 55 MHz at 1.65V and 85°C Worst Case Conditions
- Available in 100-lead LQFP Green and 100-ball TFBGA Green Packages
