ARM®-based 32-bit MCU, 16 to 64 KB Flash, 11 timers, ADC,
DAC and Communication Interfaces, 2.0-3.6V.
The STM32F051xx microcontrollers contain the powerful ARM® Cortex®-M0 32-bit RISC core, which operates at a frequency of up to 48 MHz, embedded high-speed memory (up to 64 KB flash memory and 8 KB SRAM), as well as a wide range of advanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs, one I2S, one HDMI CEC, and up to two USARTs), a 12-bit ADC, a 12-bit DAC, six 16-bit timers, a 32-bit timer, and a PWM timer with advanced control.
In stock
SKU STM32F051K8U6

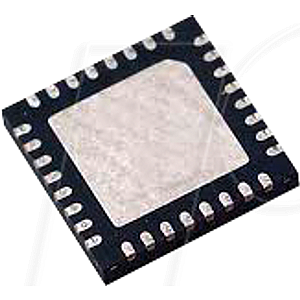

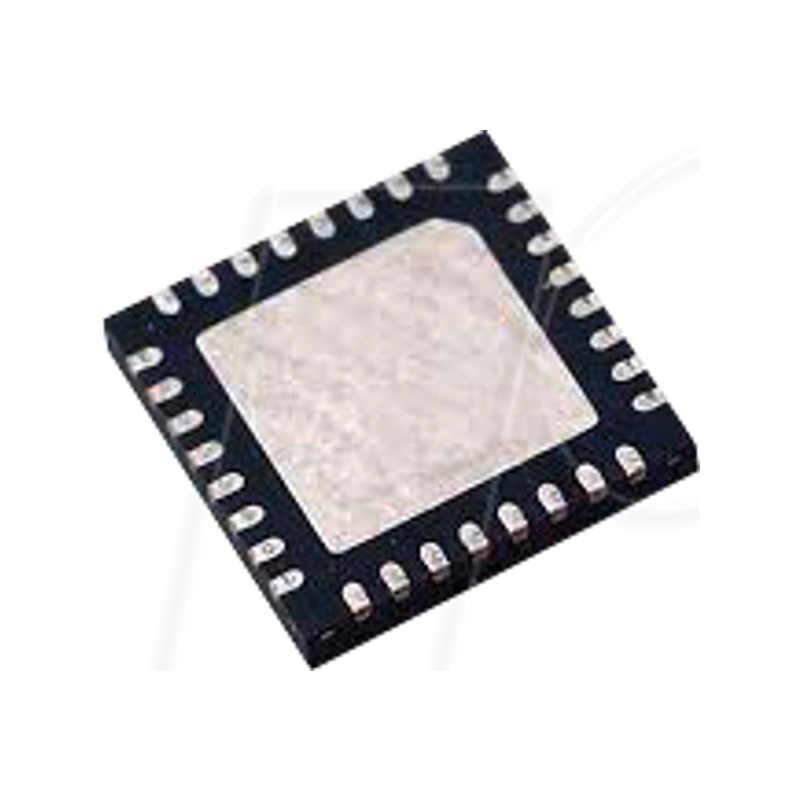

ARM®Cortex®-M0 microcontroller, 32-bit, 3V, 64KB, UFQFPN-32
MPN STM32F051K8U6
Manufacturer STMICROELECTRONICS
€2.32
incl. 19% VAT · €1.95 excl. VAT
Package
QFN-32
Specifications
General
Architecture
RISC
Core
Cortex-M0
Model
Cortex®-M0
Mounting form
QFN-32
Design
With A/D converter
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
48 MHz
Implementation
Memory
64
RAM
8 kByte
I/O-Pins
27
Electrical values
Supply voltage
2..3.6 VDC
Supply Voltage Min.
2 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
I²C
2
SPI
2
Measures
Width
5 mm
Length
5 mm
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32F051K8U6
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900003519978
HS-Code
85423190
