32-bit ARM Cortex-M0+ microcontroller; up to 16 kB Flash and 4 kB SRAM
The peripherals of the LPC81xM include a CRC engine, an I2C bus interface, up to three USARTs, up to two SPI interfaces, a multi-rate timer, a self-timer and a state-configurable timer, a comparator, function-configurable I/O ports via a switching matrix, an input pattern matching engine and up to 18 general-purpose I/O pins.
In stock
SKU LPC812M101JDH

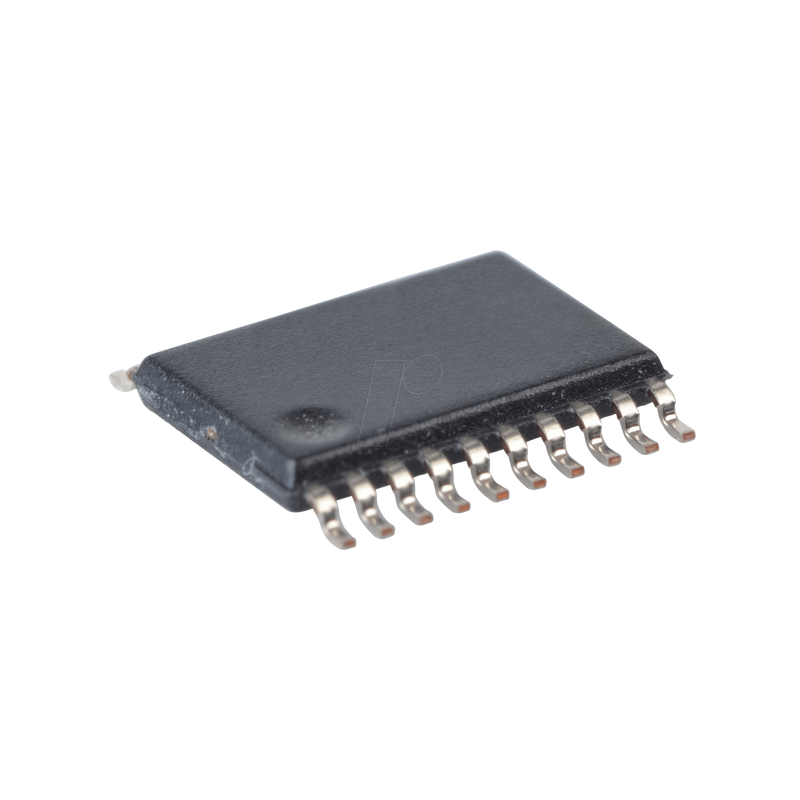

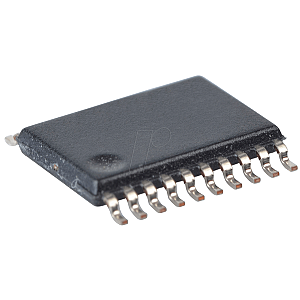

ARM®Cortex®-M0+ microcontroller, TSSOP-20
MPN LPC812M101JDH20FP
Manufacturer NXP
€1.89
incl. 19% VAT · €1.59 excl. VAT
Package
TSSOP-20
Specifications
General
Model
Cortex®-M0+
Mounting form
TSSOP-20
Design
I2C, SPI, USART
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
30 MHz
Implementation
Memory
16
RAM
4 kByte
I/O-Pins
18
Timer
3
Analog comparator
2
Electrical values
Supply voltage
1.8..3.6 VDC
Supply Voltage Min.
1 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+105
Interfaces
I²C
1
SPI
2
I/O/USART
3
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
LPC812M101JDH20FP
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003515369
HS-Code
85423990
