The STM32F302x6/8 family is based on the powerful ARM® Cortex®-M4 32-bit RISC core, which operates at a frequency of up to 72 MHz and embeds FPU. The family includes high-speed embedded memory (up to 64 KB of flash memory, 16 KB of SRAM) and a wide range of enhanced I/Os and peripherals connected to two APB buses.
1 fast 12-bit ADC (5 Msps), 3 comparators, 1 operational amplifiers, up to 18 capacitive sampling channels, 1 DAC channel, 1 low-power RTC, 1 universal 32-bit timer, 1 motor control timers, and up to 3 universal 16-bit timers and 1 DAC control timers.
3 I2Cs, up to 3 USARTs, up to 2 SPIs with full duplex multiplexed I2S, 1 USB FS device, 1 CAN, and 1 infrared transmitters.
The STM32F302x6/8 operates in the temperature range of -40 - +85 °C with a power supply of 2.0 to 3.6 V. A comprehensive set of energy-saving modes allows the development of low-power applications. The set of peripherals included will change with the selected device.
In stock
SKU STM32F302R8T6

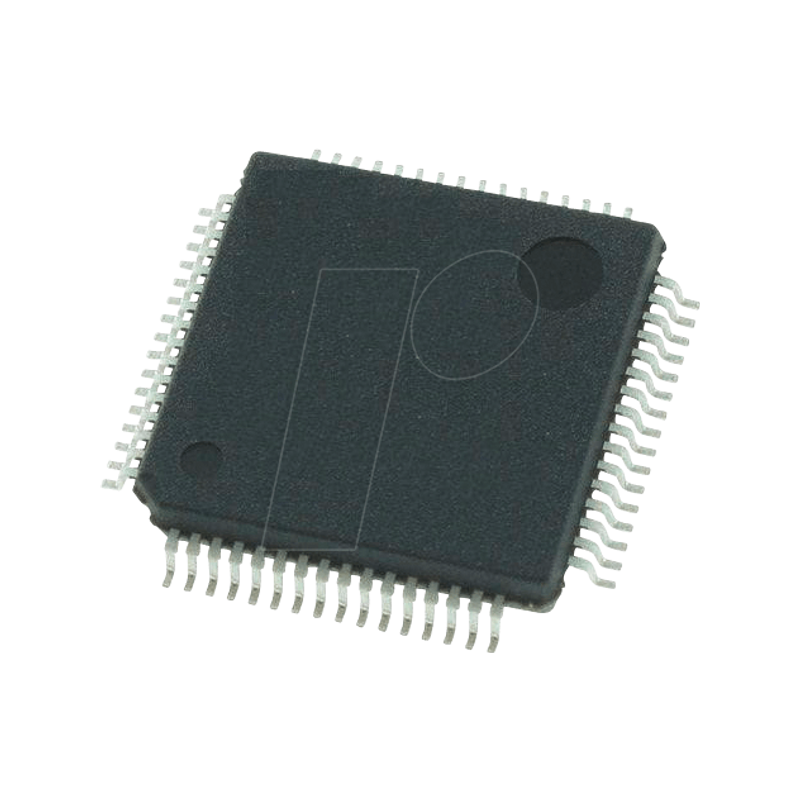

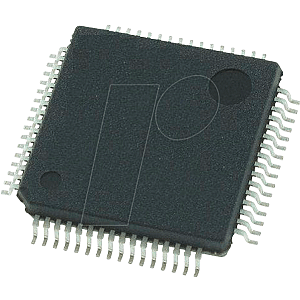

ARM®Cortex®-M4 microcontroller, 32-bit, 2V, 64 KB, LQFP-64
MPN STM32F302R8T6
Manufacturer STMICROELECTRONICS
€8.00
incl. 19% VAT · €6.72 excl. VAT
Package
LQFP-64
Specifications
General
Architecture
RISC
Core
Cortex-M4
Model
Cortex®-M4
Mounting form
LQFP-64
Design
With A/D converter
Type
32-Bit Mikrocontroller
Technology
ARM
Specials
CPU clock
72 MHz
Protocoll
CAN
Implementation
Memory
64
RAM
16 kByte
I/O-Pins
51
Timer
Yes
16-bit Timer
Yes
Internal oscillator
Yes
PWM
Yes
Electrical values
Supply voltage
2.0 ... 3.6 VDC
Supply Voltage Min.
5 V
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Interfaces
ODC
Yes
I²C
3
SPI
2
I/O/USART
3
USB
Yes
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32F302R8T6
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002653543
HS-Code
85423190
