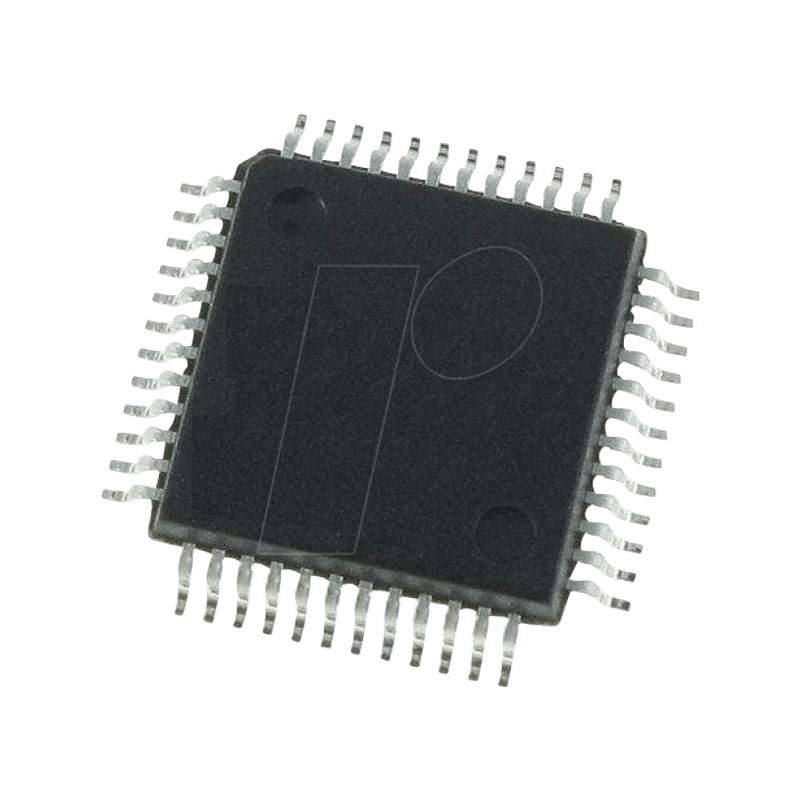

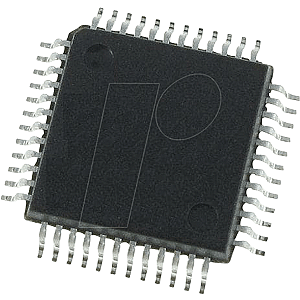

ARM®Cortex®-M4F microcontroller, 32-bit, 2-3.6V, 512KB, LQFP-48

Description
The STM32G474xx is based on the powerful Arm® Cortex®-M4 32-bit RISC core.
The Cortex-M4 core has a single-precision FPU that supports all single-precision data processing instructions from the Arm as well as all other data types. A complete set of DSP instructions and an MPU are implemented.
Integrated high-speed memory (512-KB Flash and 128-KB SRAM), plus FSMC and Quad SPI Flash interface that are connected to 2 APB buses, 2 AHB buses and 1x 32-Bit multi-AHB bus matrix.
Built-in protection for embedded flash memory and SRAM.
The devices include peripherals that speed up functionality based on mathematics/arithmetic.
- 5x 12-bit ADCs
- 7x comparators
- 6x operational amplifiers
- 7x DAC channels
- 1x voltage reference buffer
- 1x RTC
- 2x 32-Bit timers
- 3x 16-Bit PWM timers
- 7x 16-Bit timers
- 1x 16-Bit LP timer
- 4x I2Cs
- 4x multiplexed SPIs with two half-duplex I2Ss
- 3 USARTs, 2x UART + 1x low-power UART.
- 3x FDCAN
- 1x SAI
- USB device
- UCPD
Supports some independent power supplies, including an analogue independent supply input for ADC, DAC, OPAMPs and comparators. A VBAT input enables the user to back up the RTC and the register.
