80 V-80 W DMOS audio amplifier with mute/stand-by
Housing: Multiwatt-15
In stock
SKU TDA 7295

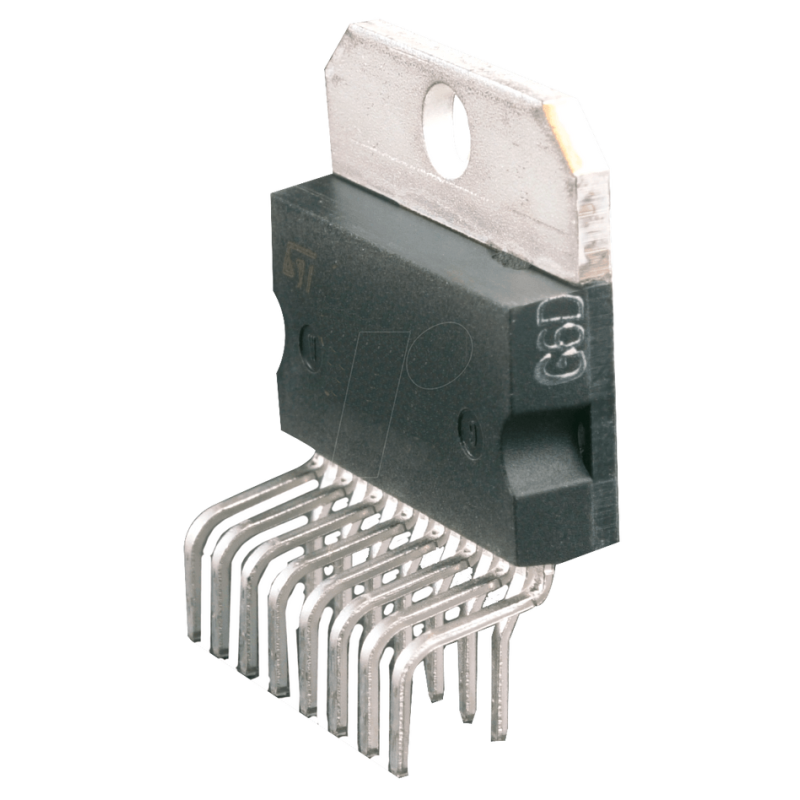

Audio amplifier, Multiwatt-15
MPN TDA7295
Manufacturer STMICROELECTRONICS
€9.56
incl. 19% VAT · €8.03 excl. VAT
Package
Multiwatt-15
Specifications
General
Model
Amplifier
Type
Audio
Design
80 W with standby and muting
Technology
DMOS
Mounting form
Multiwatt-15
Other
Temperature range
0 ... +70
Electrical values
Supply voltage
± 10.0 ... ± 40.0 VDC
Output Current
6 A
Output power
80 W
Input Resistance
0.1 M-Ohm
Input Noise Voltage
2 µV
Input Bias Current
0.5 µA
Power Bandwidth
20 kHz
Quiescent Current
30 mA
Suppley Voltage Rejection
75 dB
Closed Loop Voltage Gain
30 dB
Power loss
50 W
Distortion
0.1 %
Slew rate
10 V/µ sec
Settings
Open Loop Voltage Gain
80 dB
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
TDA7295
Weight
0.003 kg
RoHS
conform
EAN/GTIN
9900000397470
HS-Code
85423310
