TDA7264, 25 W + 25 W stereo amplifier with mute and standby
Description
The TDA7264 is class-AB dual audio power amplifier assembled in a Multiwatt package.
It is specially designed for high-quality sound applications such as hi-fi music centers and stereo TV sets.
Features
- Wide supply voltage range (up to ±22.5 V)
- Split supply
- High output power , - 25 W + 25 W into 8 Ohm with VS = ±20 V and THD = 10%
- No “pop" at turn on/off
- Mute (“pop"-free)
- Standby feature (low Iq)
- Few external components
- Short-circuit protection
- Thermal overload protection
In stock
SKU TDA 7264

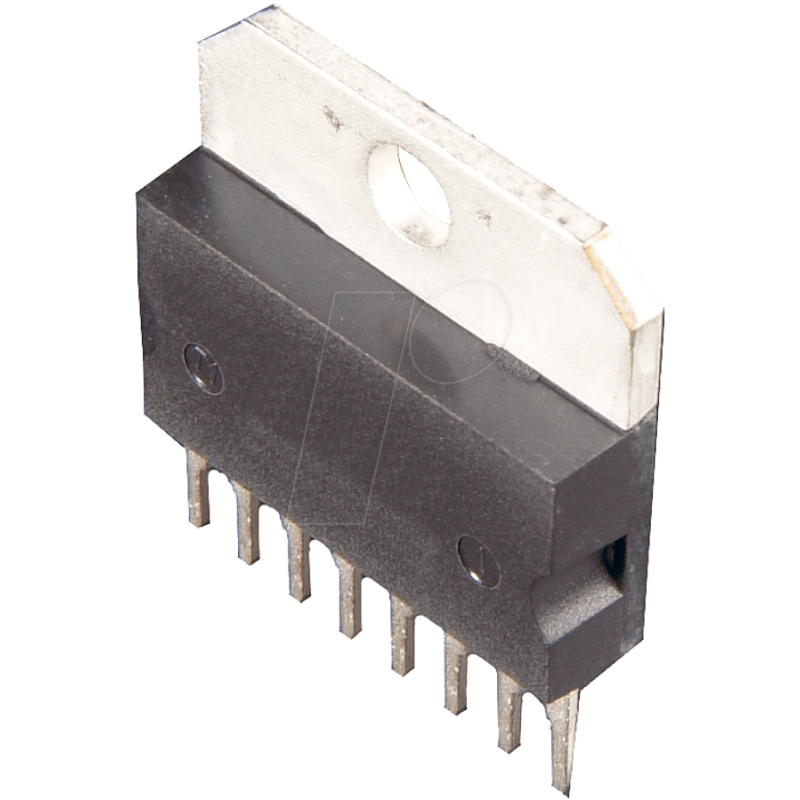

Audio amplifier, Multiwatt-8
MPN TDA7264
Manufacturer STMICROELECTRONICS
€11.83
incl. 19% VAT · €9.94 excl. VAT
Package
Multiwatt-8
Specifications
General
Model
Amplifier
Type
Audio stereo
Design
25 W dual
Technology
With standby and mute function
Mounting form
Multiwatt-8
Other
Temperature range
0 ... +70
Electrical values
Supply voltage
+-5 +-22,5 VDC
Output power
50 W
Input Resistance
0.020 M-Ohm
Input Noise Voltage
3.5 µV
Power Bandwidth
22 kHz
Quiescent Current
80 mA
Suppley Voltage Rejection
60 dB
Closed Loop Voltage Gain
30 dB
Distortion
0.5 %
Slew rate
10 V/µ sec
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
TDA7264
Weight
0.003 kg
RoHS
conform
EAN/GTIN
9900000397111
HS-Code
85423310
