Class AB audio amplifier with analog input.
The LM380 is an audio power amplifier for consumer applications. To keep system costs down, the gain is internally set to 34 dB. Unique input stage enables ground-related input signals.
The output automatically centers on half the supply voltage.
1-channel (mono)
Supply voltage: 10..22V
THD: 0.2%
PSRR: 38 dB

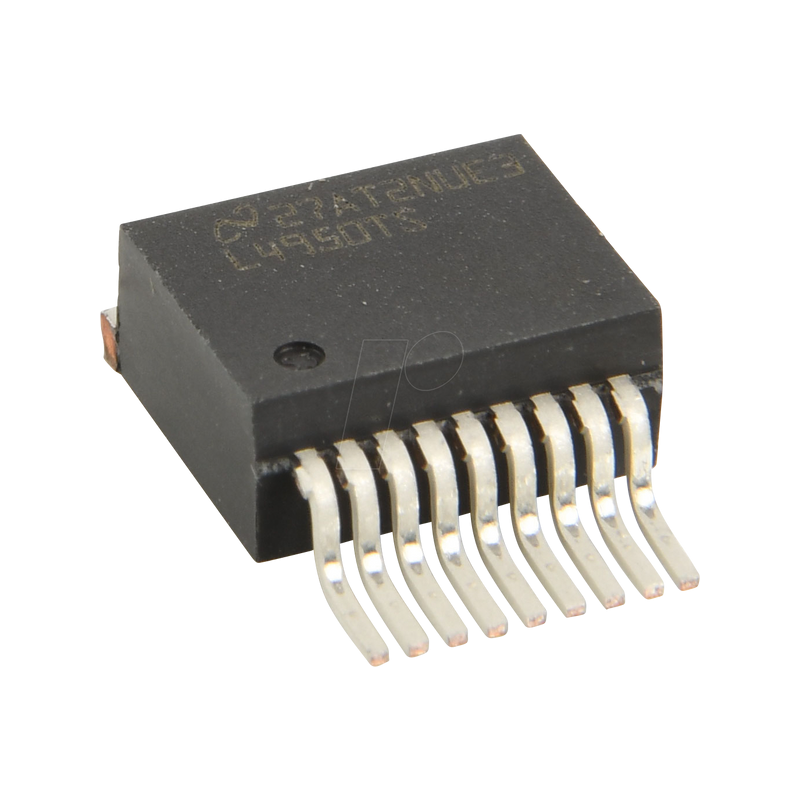

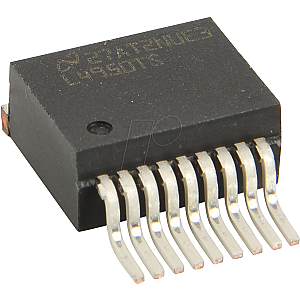

Audio IC, 2-channel, 3.1 W, Class AB, TO263-9
€4.25LM4950TS
Technical information
| General | |
|---|---|
| Model | Audio amplifier |
| Mounting form | DDPAK |
| Electrical values | |
| Supply voltage | 12 VDC |
| Output power | 3.1 W |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | LM4950TS/NOPB |
| Weight | 0.002 kg |
| RoHS | conform |
| EAN/GTIN | 9900003377417 |
| HS-Code | 85423310 |
