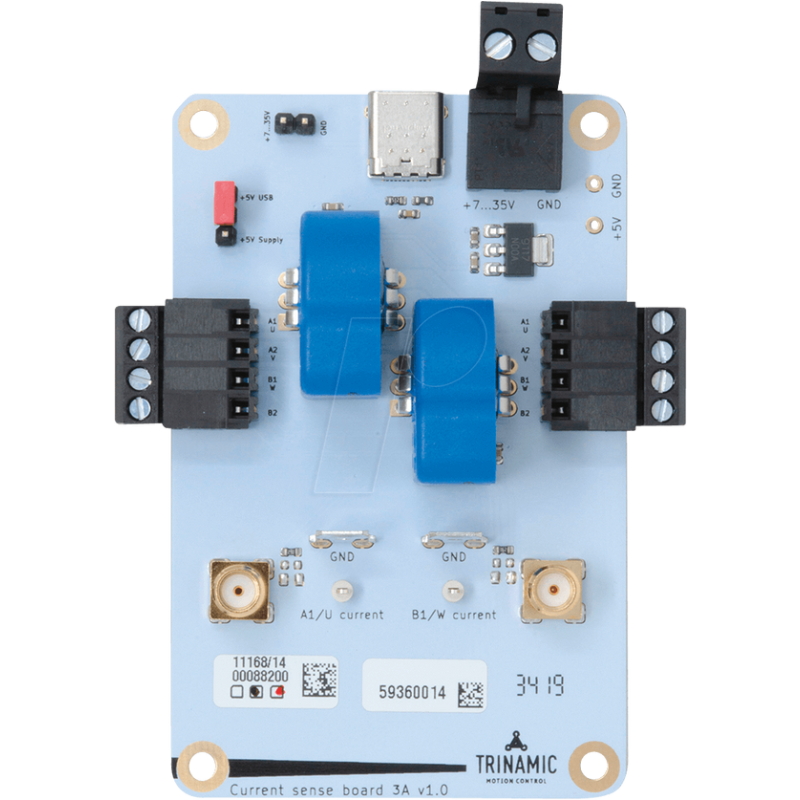

With the TMCM-0013-3A current sense board for measuring phase currents, Trinamic offers a cost-efficient alternative for testing and tuning setups. Using the standard probe clamps or the SMA-2-BNC connectors, engineers can now find the optimum current for their motors and applications without the need for expensive current clamps.
All boards are suited for both stepper motors, BLDC motors, and DC motors. When measuring the current of BLDC motors, the third phase current can be defined mathematically with the oscilloscope. Besides motor currents, the TMCM-0013-3A is also suited for other current measurements, such as the supply current.
Features and Benefits
- For measurement of two motor phases
- Power supply via USB-C or dedicated power supply with 7
35V
- Linear range of 3A
In stock
SKU TMCM-0013-3A
Board for phase current measurement, 3A, 7...35V
MPN TMCM-0013-3A
Manufacturer TRINAMIC
€187.27
incl. 19% VAT · €157.37 excl. VAT
Package
Messkarte
Specifications
General
Model
Stommessung
Type
Messkarte
Mounting form
Messkarte
Electrical values
Supply voltage
7 .. 35 VDC
Input current
3.0 A
Output Current
3.0 A
Manufacturer specifications
Manufacturer
TRINAMIC
Manufacturer ID
TMCM-0013-3A
Weight
0.058 kg
RoHS
conform
EAN/GTIN
9900002847171
HS-Code
85371091
