Bridge driver
Supply voltage: 8 - 52 V
Output current 2.8 - 5.6 A
Enclosure: Power SO-36
Switching frequency: 100 kHz
Thermal resistance 51°C/W, 43°C/W
Operating temperature: -40 +150°C

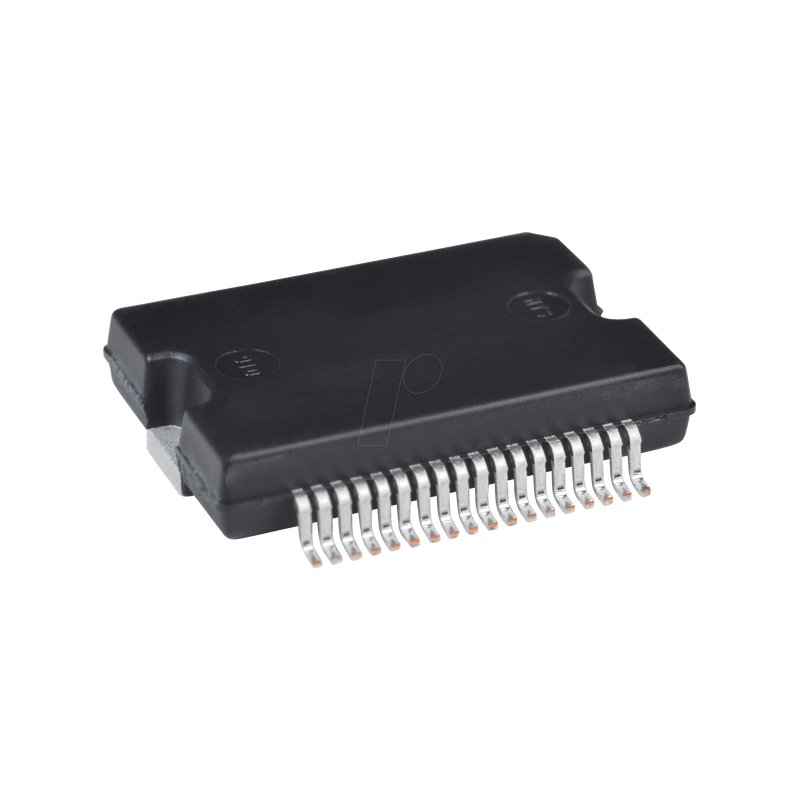

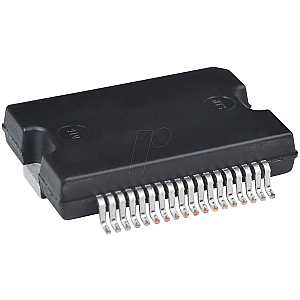

Bridge driver, 2-fold, SO-36
€9.18L 6207 PD
Technical information
| General | |
|---|---|
| Model | Driver |
| Type | Bridge driver |
| Design | 2x |
| Mounting form | SO-36 |
| Electrical values | |
| Supply voltage | 8.0 .. 52 VDC |
| Input voltage | -0.3 ... 7 VDC |
| Switching capacity | 2.8 .. 5.6 A |
| Switching frequency | 100 kHz |
| Thermal resistance | 51 °C/W, 43 °C/W |
| Other | |
| Temperature range | -40 .. +150 |
| Manufacturer specifications | |
| Manufacturer | STMICROELECTRONICS |
| Manufacturer ID | L6207PD |
| Weight | 0.002 kg |
| RoHS | conform |
| EAN/GTIN | 9900001093111 |
| HS-Code | 85423990 |
