This module provides a bi-directional half-duplex interface used in automotive and industrial LIN systems in line with the LIN BUS specifications version 2.1 and SAE J2602. The module is protected against short circuit and over-temperature by internal circuits. Under compliance with all stringent regulations, this module was developed for the automotive sector to work perfectly in its environment.
- max. Baud rate (KBaud): 20
MCP200 X range products:
- 8-pin SOIC, DFN and SOIC housing
- MCP2003, LIN-compatible driver with wake-pins
- MCP2004, LIN-compatible
In stock
SKU MCP 2003-E/SN

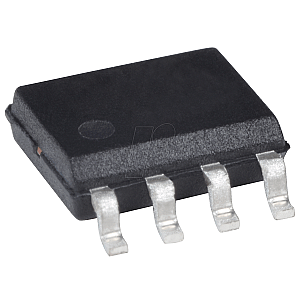

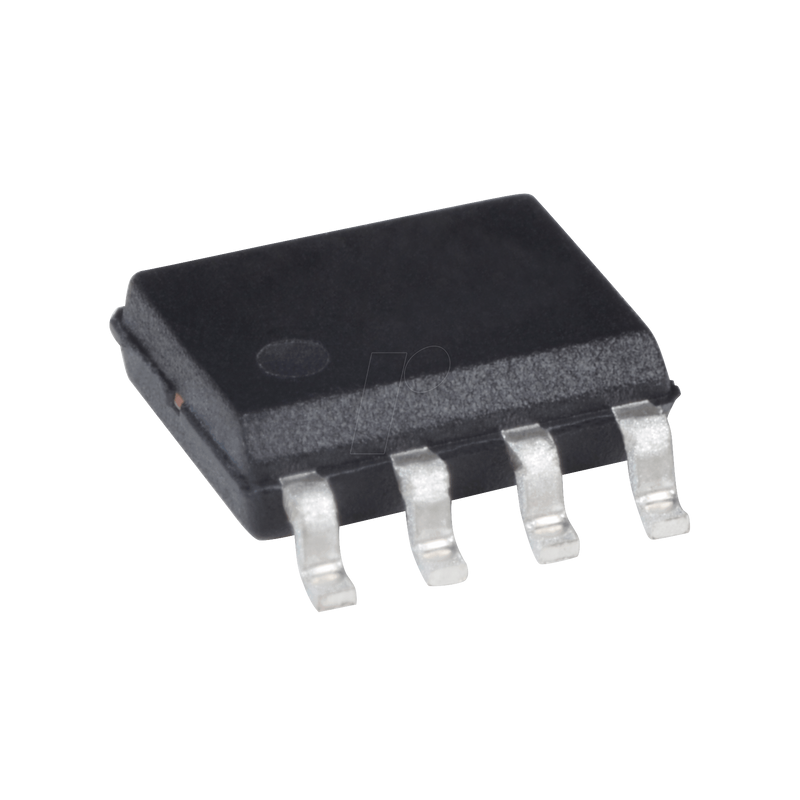

Bus controller, 1 driver / 1 receiver, SO-8
MPN MCP2003-E/SN
Manufacturer MICROCHIP
€1.09
incl. 19% VAT · €0.92 excl. VAT
Package
SOIC-8 (150mil)
Specifications
General
Model
Transmitter/receiver
Type
LIN transceiver
Mounting form
SOIC-8 (150mil)
Electrical values
Supply voltage
6.0 ... 27 VDC
Input voltage
0.8 ... 5.3 VDC
Other
Temperature range
-40 ... +125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP2003-E/SN
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001097393
HS-Code
85423990
