Philips I²C-BUS microcontroller & peripherals
SO-16 I²C general purpose I/O

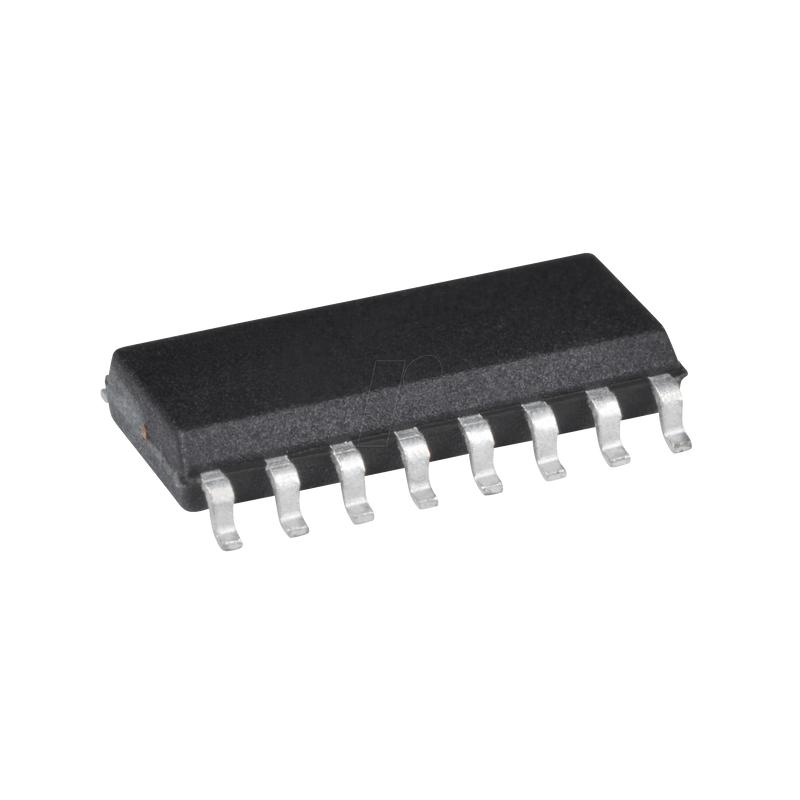

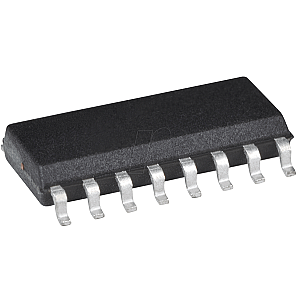

Bus controller, push-pull, SO-16
€2.76PCA 9554 D
Technical information
| General | |
|---|---|
| Model | I²C-Bus Controller |
| Type | 8-bit |
| Design | General purpose I/O |
| Mounting form | SO-16 |
| Electrical values | |
| Supply voltage | 2.3 ... 5.5 VDC |
| Output Current | ±0.025 A |
| Input voltage | 0.3 ... 5.5 VDC |
| Input current | ±20 m A |
| Performance | 0.4 W |
| Frequency | 0 - 0.4 MHz |
| Other | |
| Temperature range | -40 ... +85 |
| Interfaces | |
| I²C | Yes |
| Implementation | |
| Memory controller | 8 |
| I/O-Pins | 8 |
| Manufacturer specifications | |
| Manufacturer | NXP |
| Manufacturer ID | PCA9554D,118 |
| Weight | 5.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900000700584 |
| HS-Code | 85423190 |
