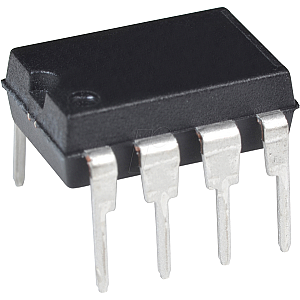

Bus line transceiver, RS-422/RS-485 DIP-8

Differential line driver and pair of low power receivers

The SN55LBC180, SN65LBC180, and SN75LBC180
Are monolithic integrated circuits for bi-directional
Integrated circuits used for bidirectional data
Communication over long cables, the characteristics
Which accept the properties of transmission lines. They are
Balanced or differential voltage mode devices
The requirements of industry standards
Meet or exceed ANSI RS-485 and ISO 8482:1987(E) standards.
These building blocks were built using the TI-developed
LinBiCMOS™ with the low power consumption of
CMOS and the precision and robustness of bipolar
Transistors in the same circuit.

Important features
