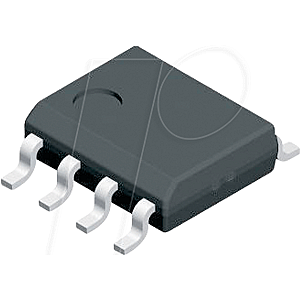

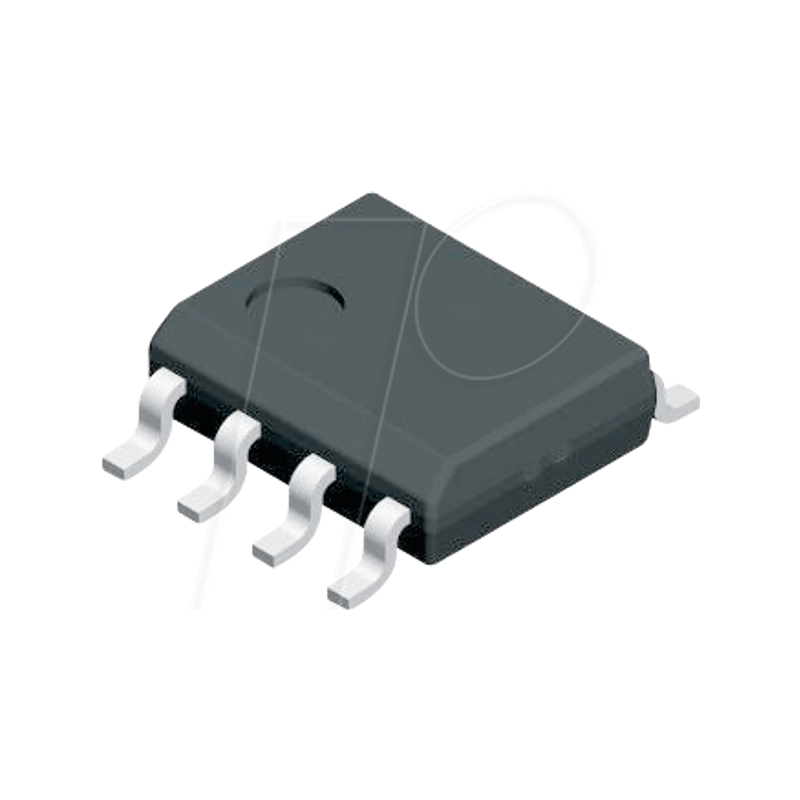

CAN transceiver, standby+silent mode, 5V, SO-8

Industrial Grade CAN TRX with NSIL PIN
The Microchip ATA6560 is a high-speed CAN FD ready CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the two-wire physical CAN bus. Designed for high-speed CAN applications (up to 5 Mbps) in the automotive industry, the transceiver provides differential transmit and receive capability for (one microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD), as well as the following features: Ideal passive behavior to the CAN bus when the supply voltage is switched off. Three operating modes (standby, normal, and silent modes) along with dedicated fail-safe functions make the Microchip ATA6560 an excellent choice for all types of high-speed CAN networks, especially for nodes that require low-power mode with wake-up capability over the CAN bus.

Key features
