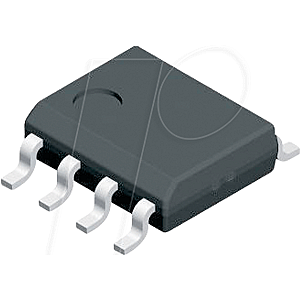

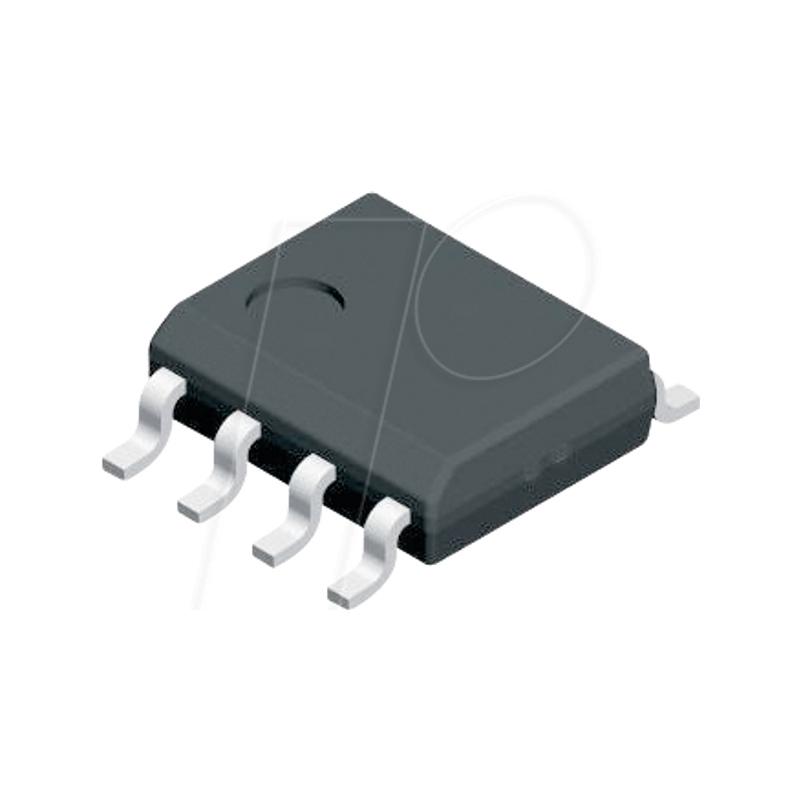

CAN transceiver, standby+silent mode, 5V, SO-8

The Microchip ATA6560 is a high-speed CAN FD ready CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications (up to 5 Mbit/s) in the automotive industry and provides differential transmit and receive capability for (a microcontroller with) a CAN protocol controller. It offers improved electromagnetic compatibility (EMC) and electrostatic discharge (ESD) and the following features: Ideal passive behaviour to the CAN bus when the supply voltage is switched off. Three operating modes (standby, normal and silent) together with the dedicated fail-safe features make the Microchip ATA6560 an excellent choice for all types of high-speed CAN networks, especially for nodes that require a low-power mode with wake-up capability over the CAN bus.

Key features
- Fully ISO 11898-2,-5, SAE J2284 compliant
- CAN FD capable
- Communication speed up to 5Mbit/s
- Low electromagnetic emission (EME) and high electromagnetic
- electromagnetic interference (EMI)
- Differential receiver with wide common mode range
- Silent mode (receive only)
- Remote wake-up function via CAN bus
