PROFET® BTS 6163 D, Smart Highside Power Switch
Description
N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS? chip on chip technology. Providing embedded protective functions.
Features
- Short circuit protection with latch
- Current limitation
- Overload protection
- Thermal shutdown with restart
- Overvoltage protection (including load dump)
- Loss of ground protection
- Loss of Vbb protection (with external diode for charged inductive loads)
- Very low standby current
- Fast demagnetization of inductive loads
- Electrostatic discharge (ESD) protection
- Optimized static electromagnetic compatibility (EMC)
- Green Product (RoHS compliant)
- AEC qualified
Diagnostic Function
- Proportional load current sense (with defined fault signal in case of overload operation, overtemperature shutdown and/or short circuit shutdown)
Application
- Power switch with current sense diagnostic feedback for 42V and 24 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuitsPROFET® BTS 6163 D, Smart Highside Power Switch
Description
N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS? chip on chip technology. Providing embedded protective functions.
Features
- Short circuit protection with latch
- Current limitation
- Overload protection
- Thermal shutdown with restart
- Overvoltage protection (including load dump)
- Loss of ground protection
- Loss of Vbb protection (with external diode for charged inductive loads)
- Very low standby current
- Fast demagnetization of inductive loads
- Electrostatic discharge (ESD) protection
- Optimized static electromagnetic compatibility (EMC)
- Green Product (RoHS compliant)
- AEC qualified
Diagnostic Function
- Proportional load current sense (with defined fault signal in case of overload operation, overtemperature shutdown and/or short circuit shutdown)
Application
- Power switch with current sense diagnostic feedback for 42V and 24 V DC grounded loads
- All types of resistive, inductive and capacitive loads
- Replaces electromechanical relays, fuses and discrete circuits

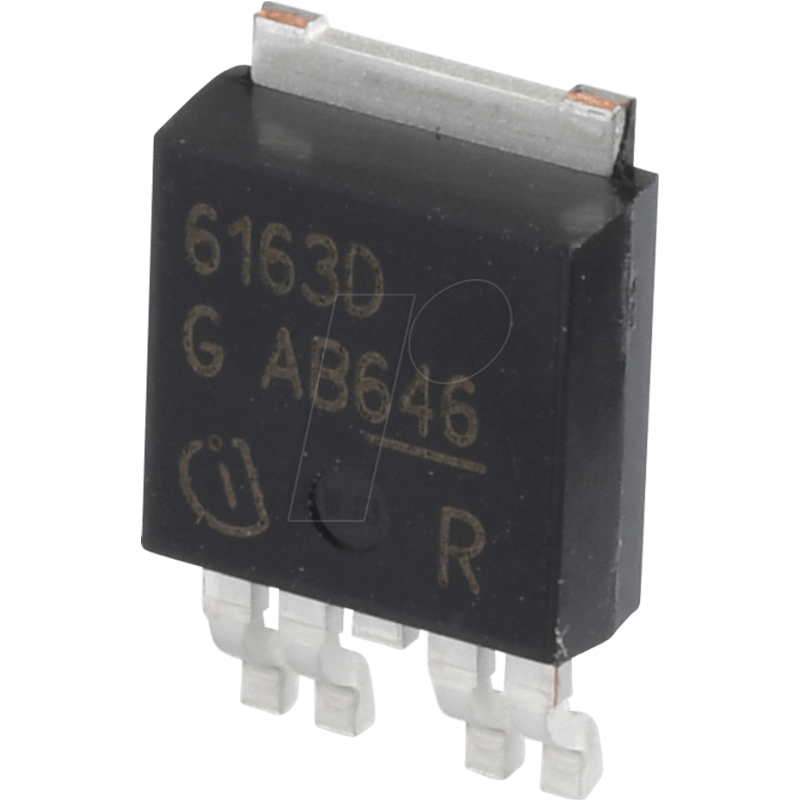

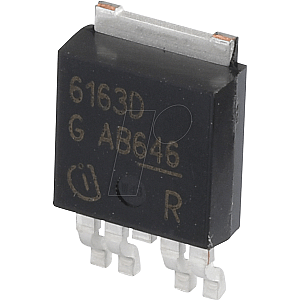

Circuit-breaker, SIPMOS, high-side, single-throw, 80 A, TO-252-5
€4.48BTS 6163 D
Technical information
| General | |
|---|---|
| Type | Power switch |
| Design | N polarity |
| Mounting form | DPAK-5 |
| Model | Switching controller |
| Electrical values | |
| Input current | 21.5 A |
| Supply voltage | 5.5 - 52 VDC |
| Other | |
| Temperature range | -40 ... +150 |
| Manufacturer specifications | |
| Manufacturer | INFINEON |
| Manufacturer ID | BTS6163D |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001888045 |
| HS-Code | 85423990 |
