Mainstream Arm Cortex-M0 USB line MCU with 32 Kbytes of Flash memory, 48 MHz CPU, USB, CAN and CEC functions
The STM32F042x4/x6 microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 32 Kbytes of Flash memory and 6 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (one I2C, two SPIs/one I2S, one HDMI CEC and two USARTs), one USB Full-speed device (crystal-less), one CAN, one 12-bit ADC, four 16-bit timers, one 32-bit timer and an advanced-control PWM time
In stock
SKU STM32F042K6T6

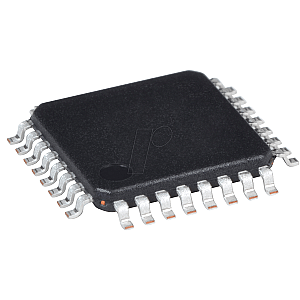

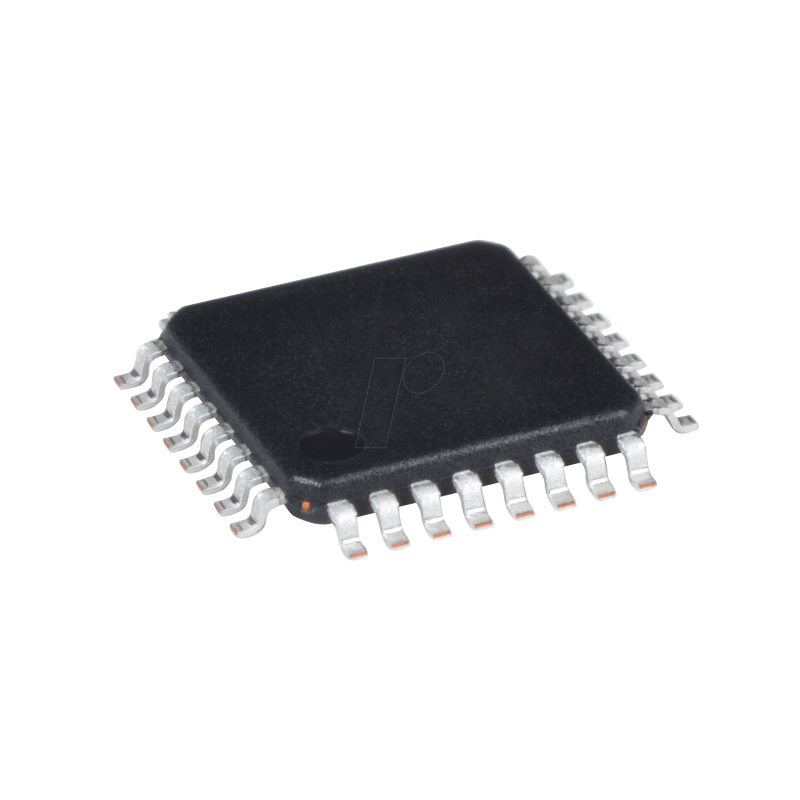

Cortex-M0 microcontroller,32/6KB,LQFP-32
MPN STM32F042K6T6
Manufacturer STMICROELECTRONICS
€2.05
incl. 19% VAT · €1.72 excl. VAT
Package
LQFP-32
Specifications
General
Architecture
ARM
Core
Cortex-M0
Mounting form
LQFP-32
Design
USB, CAN and CEC
Technology
ARM
Specials
CPU clock
48 MHz
Implementation
Memory
32
RAM
6 kByte
I/O-Pins
26
Electrical values
Supply voltage
2.0..3.6 VDC
Supply Voltage Max.
3.6 V
Other
Temperature range
-40..+85
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
STM32F042K6T6
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003744455
HS-Code
85423190
