Current Controller for Stepping Motors
The L6506/D is a linear integrated circuit designed to sense and control the current in stepping motors and similar devices.
When used in conjunction with the L293, L298, L7150, L6114/L6115, the chip set forms a constant current drive for an inductive load
and performs all the interface function from the control logic thru the power stage.
Two or more devices may be synchronized using the sync pin. In this mode of operation the oscillator in the master chip sets the operating frequency in all chips.
In stock
SKU L 6506

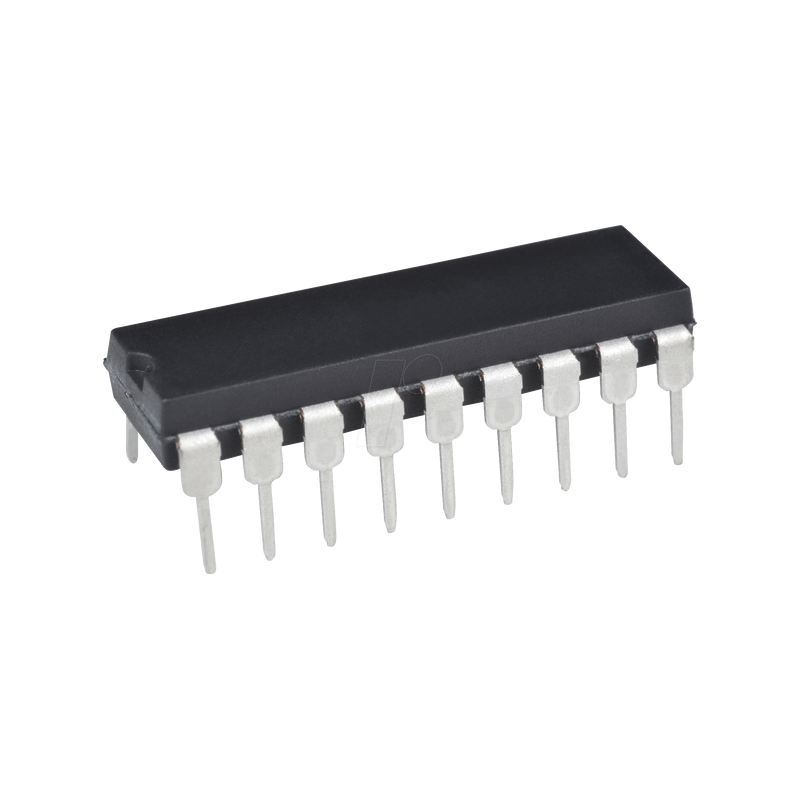

Current controller for stepper motors, linear, DIP-18
MPN L6506
Manufacturer STMICROELECTRONICS
€5.45
incl. 19% VAT · €4.58 excl. VAT
Package
DIP-18
Specifications
General
Model
Driver
Type
Motor driver
Design
Linear
Mounting form
DIP-18
Electrical values
Supply voltage
4.5 .. 7 VDC
Input voltage
-0.3 ... 3 VDC
Output voltage
0.25 .. 3.5 V DC
Output Current
- A
Igf
25 mA
Output power
0.8 W
Frequency range
5 - 70 Hz
Thermal resistance
80 °C/W
Other
Temperature range
-40 .. +150
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
L6506
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000097684
HS-Code
85423990
