The INA210, INA211, INA212, INA213, INA214, and INA215 are voltage-output, current-shunt monitors that can sense drops across shunts at common-mode voltages from -0.3 V to 26 V, independent of the supply voltage. Five fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.
In stock
SKU INA 214 AIDCKT

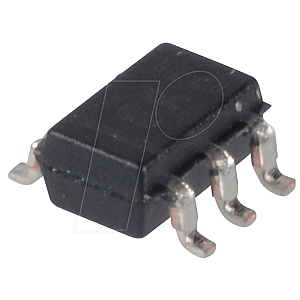

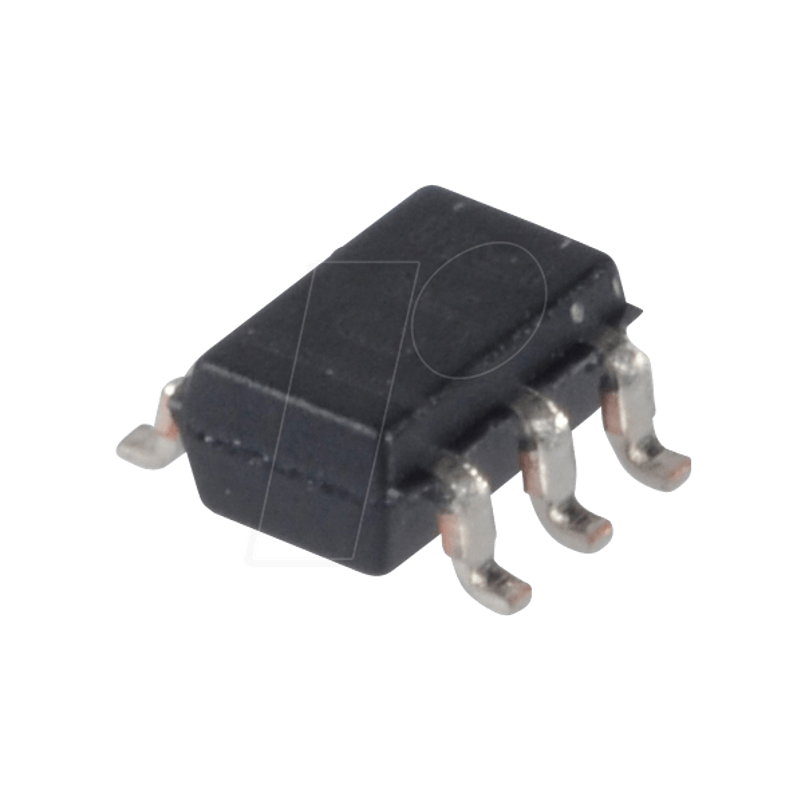

Current shunt monitor, 1-fold, 100 V/V, 0.4 V/µs, 30 kHz, SC-70-
MPN INA214AIDCKT
Manufacturer TEXAS INSTRUMENTS
€1.92
incl. 19% VAT · €1.61 excl. VAT
Package
SC-70-6
Specifications
General
Type
Verstärker
Model
Current sense amplifier
Channels
1
Mounting form
SC-70-6
Other
Temperature range
-40..+125
Electrical values
Supply voltage
2.7 ... 26.0 VDC
Frequency range
0.03 MHz
Slew rate
0.4 V/µ sec
Frequency
0.03 MHz
Power consumption
0.1
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
INA214AIDCKT
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001886614
HS-Code
85423990
