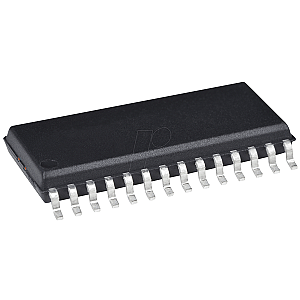

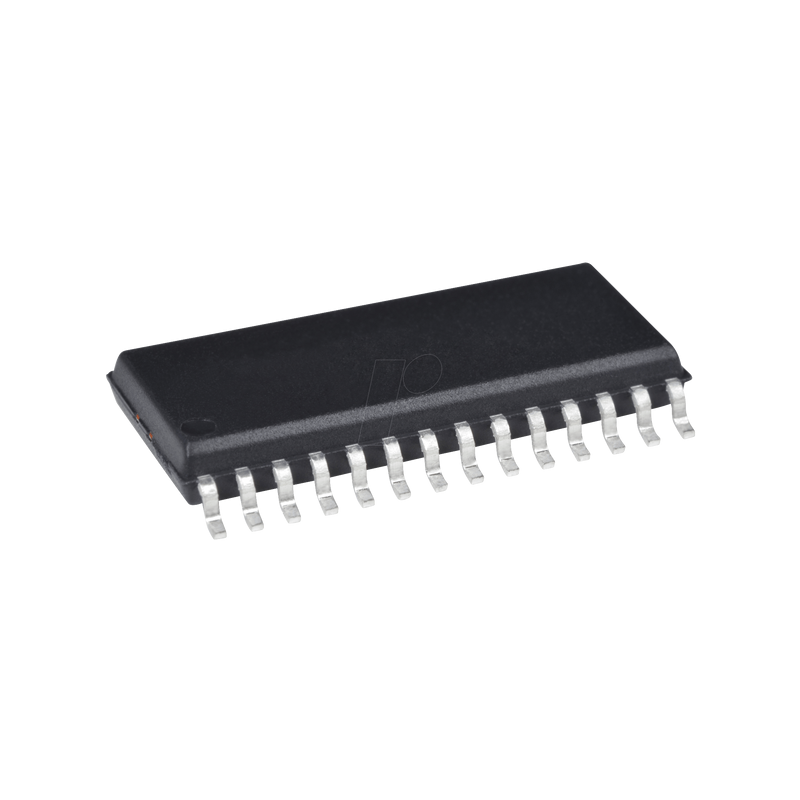

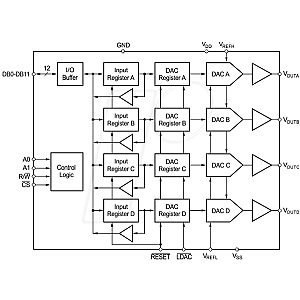

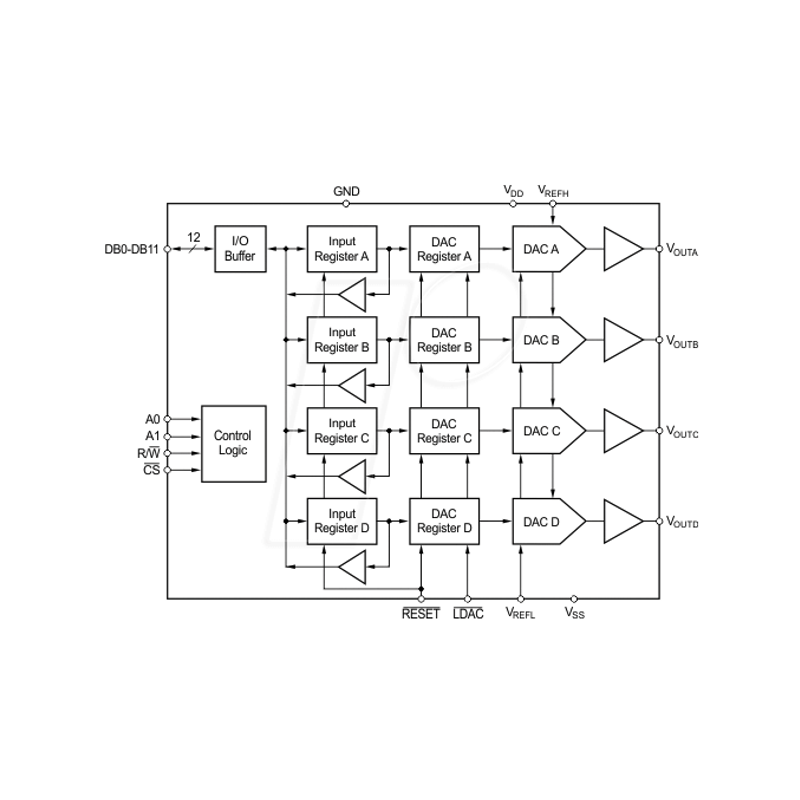

D/A converter, 12-bit, 4-channel, U-output, SOL-28

12-Bit Quad Voltage Output Digital-to-Analog Converter

Description:
The DAC7624 and DAC7625 are 12-bit quad voltage output digital-to-analog converters with guaranteed 12-bit monotonic performance over the specified temperature range. They accept 12-bit parallel input data, have double-buffered DAC input logic (allowing simultaneous update of all DACs), and provide a readback mode of the internal input registers. An asynchronous reset clears all registers to a mid-scale code of 800H (DAC7624) or to a zero-scale of 000H (DAC7625). The DAC7624 and DAC7625 can operate from a single +5V supply or from +5V and -5V supplies.
Low power and small size per DAC make the DAC7624 and DAC7625 ideal for automatic test equipment, DAC-per-pin programmers, data acquisition systems, and closed-loop servo-control. The DAC7624 and DAC7625 are available in a 28-pin plastic double-wide or a 28-lead SOIC package, and offer guaranteed specifications over the -40°C to +85°C temperature range.

Features:
- Low Power: 20mW
- Unipolar or bipolar operation
- Settling time: 10µs to 0.012%
- 12-BIT Linearity and monotonicity over industrial temp range: -40°C to +85°C
- Reset to mid-scale (DAC7624) or zero-scale (DAC7625)
- Data readback
- Double-buffered data inputs

Applications:
- Process control
- Data acquisition systems
- Closed-Loop Servo-Control
- Motor control
- Ate pin electronics
- DAC-per-pin programmers
