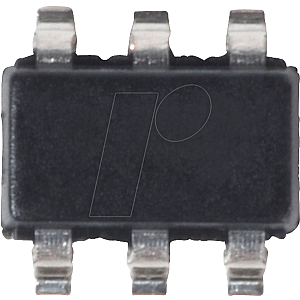

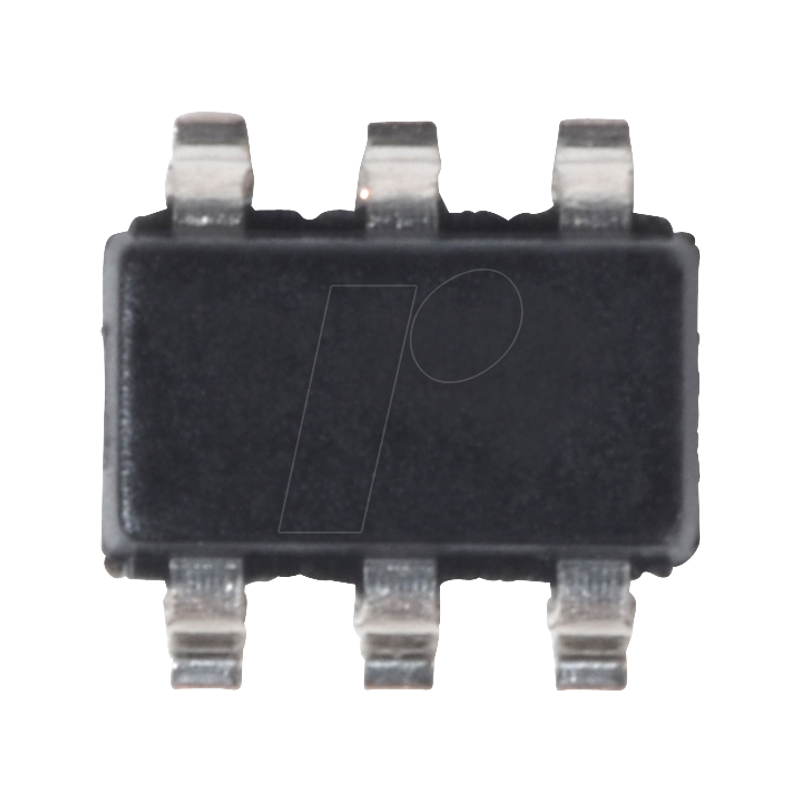

DA converter, 8 bit, I2C, 2.7 - 5.5V V, SOT-23-6

8-Bit Voltage Output Digital-to-Analog Converter
with EEPROM and I2C™ Interface

Description:
MCP4706 is a single channel, 8-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface. The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saves at powered off. The VREF pin or the device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.

Additional Features:
- Output Voltage Resolutions
- 8-bit: MCP4706
- Rail-to-Rail Output
- Fast Settling Time of 6 µs (typical)
- DAC Voltage Reference Options:
- VDD
- VREF
- Output Gain Options:
- Unity (1x)
- 2x, only when VREF is used as voltage source
- Non-Volatile Memory (EEPROM):
- Auto Recall of Saved DAC register setting
- Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)
- Power-Down Modes:
- Disconnects output buffer
- Selection of VOUT pull-down resistors (640 kohm, 125 kohm, or 1 kohm)
- Low Power Consumption:
- Normal Operation: 210 µA typ.
- Power Down Operation: 60 nA typ. (PD1:PD0 = “11")
- Single-Supply Operation: 2.7V to 5.5V
- I2C™ Interface:
- Eight Available Addresses
- Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes
- Small 6-lead SOT-23 and DFN (2x2) Packages
- Extended Temperature Range: -40°C to +125°C
- AEC-Q100 Grade 1 qualified

Applications:
- Set Point or Offset Trimming
- Sensor Calibration
- Low-Power Portable Instrumentation
- PC Peripherals
- Data Acquisition Systems
- Motor Control
