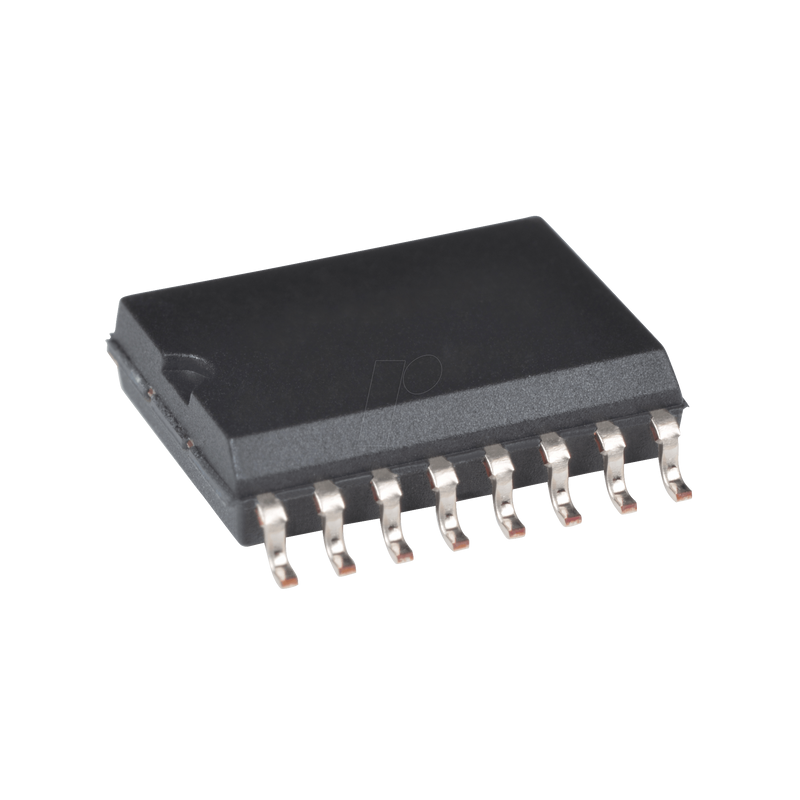

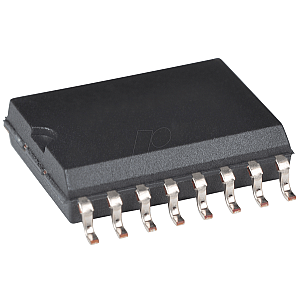

Darlington driver, constant current controller, SO-16

The HV9861A is a patented, average-mode, constant current control LED driver IC operating in a constant off-time mode. Unlike the HV9910B, this control IC does not produce a peak-to-average error, and therefore greatly improves the accuracy, line and load regulation of the LED current without any need for loop compensation or high-side current sensing. The output LED current accuracy is ±3%. The IC is equipped with a current limit comparator for hiccup-mode output short circuit protection. Internal over-temperature protection is provided. The internally regulated voltage (VDD) for the HV9861A is 7.5 V. The IC can be powered from a 15 - 450 V supply. A PWM dimming input is provided that accepts an external control TTL-compatible signal. The output current can be programmed by an internal 270 mV reference, or controlled externally through a 0 - 1.5 V dimming input. The IC is pin-to-pin compatible with the Supertex HV9910B and HV9961, and can be used as a drop-in replacement for many applications to improve the LED current accuracy and regulation.

- Fast average current control
- Programmable constant off-time switching
- PWM/linear dimming input
- Output short circuit protection with skip mode
- Ambient operating temperature -40 - +125°C
- Pin-compatible with the HV9910B and HV9961

Technical data:
- Input voltage: 8 - 450 V
- Dimming: PWM
- Power: 1000 mW
