The ULx200xA devices are high-voltage, high-current . Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.

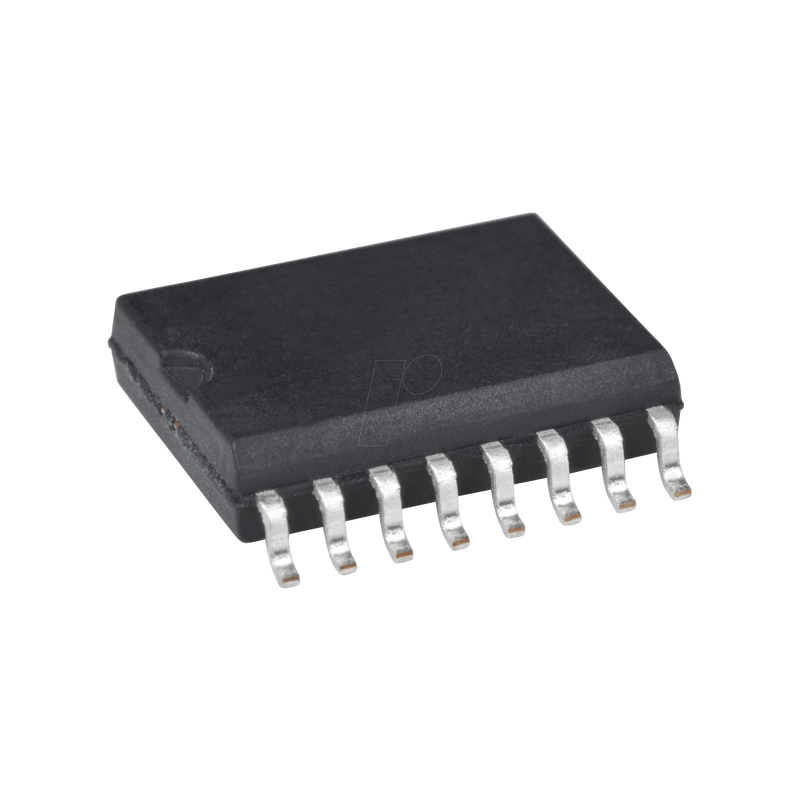

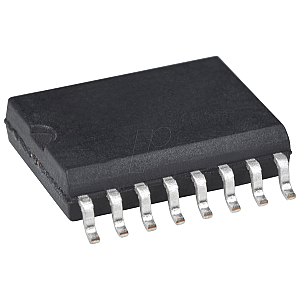

Darlington Transistor Array SOIC-16
€0.29ULN 2003 ADR
Technical information
| General | |
|---|---|
| Model | Darlington-Transistor-Array |
| Design | 7-channel |
| Mounting form | SO-16 |
| Housing | SOIC-16 |
| Technology | TTL/CMOS |
| Base Product Number | ULN2003 |
| Electrical values | |
| Output voltage | Max. 50 V DC |
| Output Current | 0.5 A |
| Supply Voltage Min. | 6 V |
| Supply Voltage Max. | 15 V |
| Output Current | 500 mA |
| Ic | 1.35 mA |
| Other | |
| Temperature range | -20 .. +70 |
| Packaging | |
| Packaging | Gurtabschnitt |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | ULN2003ADR |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001891366 |
| HS-Code | 85423990 |
