The MCP1640/B/C/D components are compact, highly efficient, synchronous step-up DC/DC converters with fixed frequencies. An easy-to-use power supply solution for applications powered by NiCd, NiMH, Li-ion or Li-polymer batteries fed via single, double or triple cells. The controller with a low 0.65-V input is controlled by low-voltage technology.
- High efficiency through integrated N-channel boost and P-channel switch.
- Integrated compensation and protection circuits
- With true output or input/output bypass option

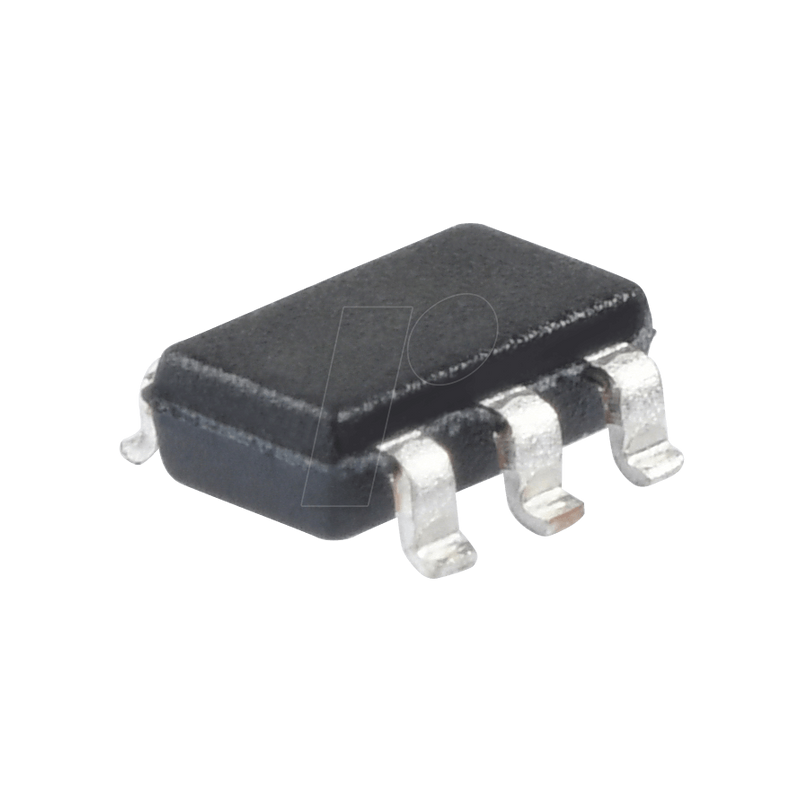

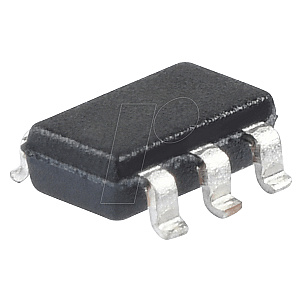

DC/DC, adjustable, 0.65 ... 5,5 V, 2,0 ... 5.5 V, SOT-23-6
€1.03MCP 1640BT-I/CHY
Technical information
| General | |
|---|---|
| Model | Converter |
| Type | Start-up synchronous regulator |
| Design | True Load Disconnect Option |
| Mounting form | SOT-23-6 |
| Electrical values | |
| Input voltage | 0.35 ... 5.5 VDC |
| Output voltage | variable V DC |
| Supply voltage | 0.65 ... 5.5 VDC |
| Ic | 350 mA |
| Measuring range | |
| Frequency | 500 kHz |
| Other | |
| Temperature range | -40 ... +85 |
| Manufacturer specifications | |
| Manufacturer | MICROCHIP |
| Manufacturer ID | MCP1640BT-I/CHY |
| Weight | 1.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001097348 |
| HS-Code | 85423990 |
