The DCP01B series is a family of isolated, unregulated 1 W DC/DC converter modules. The DCP01B series devices require a minimum of external components and feature on-chip device protection. They offer additional features such as output lockout and switching frequency synchronization.
Key features

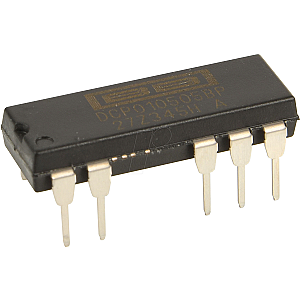

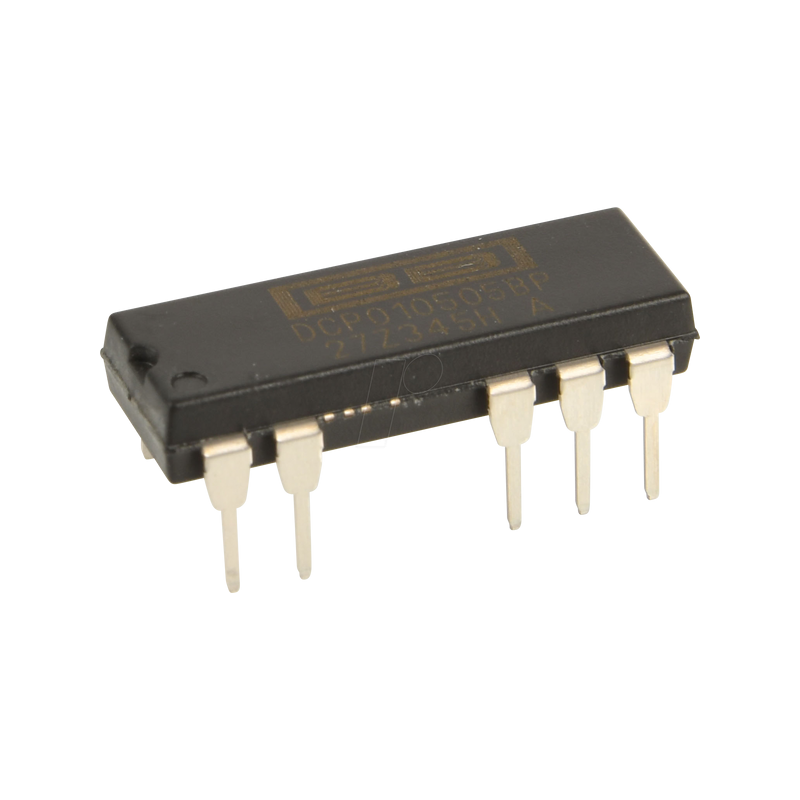

DC/DC converter, isolated, 1 W, PDIP7
€10.12DCP010505BP
Technical information
| General | |
|---|---|
| Model | DCP010505B |
| Type | DC-DC Konverter |
| Design | Insulated |
| Mounting form | DIP-7 |
| Electrical values | |
| Input voltage | 5/15/24 VDC |
| Output voltage | 5/6.5/12/15 V DC |
| Output Current | 0.2 A |
| Output power | 1 W |
| Implementation | |
| Regulated | Uncontrolled |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | DCP010505BP |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900003419032 |
| HS-Code | 85423990 |
